DS-2H200 Orbital Shaker
(Horizontal)
The destaining shaker is widely used in Western experiments such as blocking of blotting membranes, antibody incubation, washing, fixation, staining and destaining of electrophoretic gels; it can also be used for shaking of liquids in various centrifuge tubes, multi-well plates, petri dishes and culture bottles. , Mix well. The movement modes are horizontal, pendulum and three-dimensional composite, and the Servicebio shaker is equipped with LCD display, knob-type control keys and digital timing function.
Descriptions
1. The tray is larger and adopts stepper motor, which has low noise and more reliable quality;
2. Long time operation without fever;

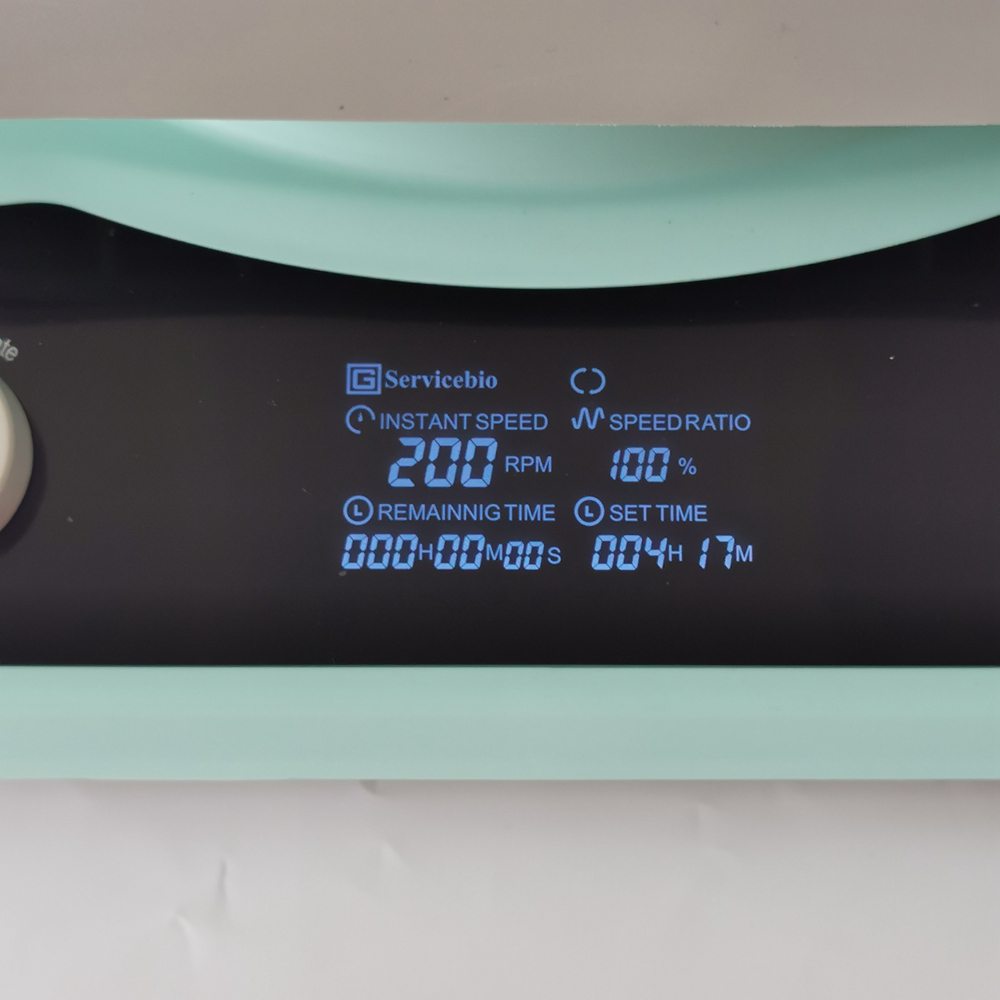

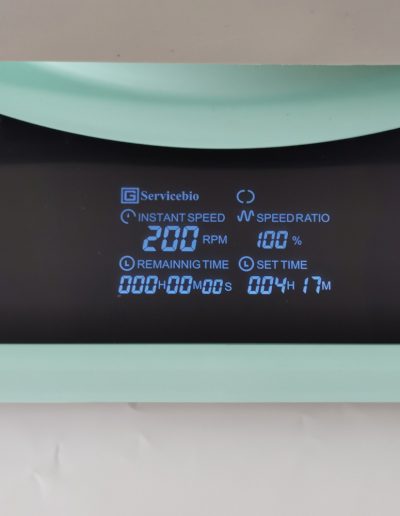

3. Large digital display screen , intuitive display of running speed and running time
4. Timing function, when the time is up, the buzzer will remind and end the operation
Specifications
|
Cat. No. |
DS-3D100 |
DS-2H200 DS-2S100 |
SYC-P200 SYC-Z100 |
SYC-FP200 SYC-FZ100 |
|
Speed Range |
Horizontal (Orbital) model : 5-100rpm, Pendulum (Rokcing/seesaw) model: 5-100 rpm |
Horizontal (Orbital) model: 5-200rpm, Pendulum (Rokcing/seesaw) model: 5-100 rpm |
Horizontal (Orbital) model: 0-200rpm, Pendulum (Rokcing/seesaw) model: 0-100 rpm |
Horizontal (Orbital) model: 0-200rpm, Pendulum (Rokcing/seesaw) model: 0-100 rpm |
|
Radius Of Gyration/Swing Angle |
Radius of gyration in plane mode: 15mm, |
Radius of gyration in plane mode: 15mm, |
Radius of gyration in plane mode: 10mm, |
Radius of gyration in plane mode: 10mm, |
|
3D Operation |
3D composite mode: 5-100 rpm, Speed ratio in 3D composite mode: 10%-100% |
/ |
/ |
/ |
|
Automatic Leveling Function |
leveling function |
leveling function |
leveling function |
leveling function |
|
Timing Range |
0min-999h59min |
0min-999h59min |
0min-999h59min |
0min-999h59min |
|
Digital Display |
Time, Speed, Digital display |
Time, Speed, Digital display |
Time, Speed, Digital display |
Time, Speed, Digital display |
|
Max. Load |
5kg |
5kg |
2.5kg |
2kg |
|
Motor |
Stepper motor |
Stepper motor |
Stepper motor |
Stepper motor |
|
Control Method |
Program control chip |
Program control chip |
Program control chip |
Program control chip |
|
Tray Size |
338*308mm |
338*308mm |
317*245mm |
317*245mm |
|
Beep Prompt |
Beep prompt |
Beep prompt |
Beep prompt |
Beep prompt |
|
Input Voltage |
AC100V/AC 240V 50Hz/60Hz |
AC100V/AC 240V 50Hz/60Hz |
AC100V/AC 240V 50Hz/60Hz |
AC100V/AC 240V 50Hz/60Hz |
|
Power |
35W |
20W |
20W |
20W |
|
Fuse |
250V/3A |
250V/3A |
/ |
/ |
|
Controller Size |
35mm |
35mm |
35mm |
35mm |
|
Display Size |
740*420mm |
740*420mm |
/ |
/ |
|
Overall Dimension |
380*330*180mm |
380*330*148mm 380*330*173mm |
317*245*130mm 317*245*139mm |
317*245*134mm 317*245*143mm |
|
Net Weight |
9.5kg |
7.6kg/8.5kg |
4.5kg |
4.5kg |
