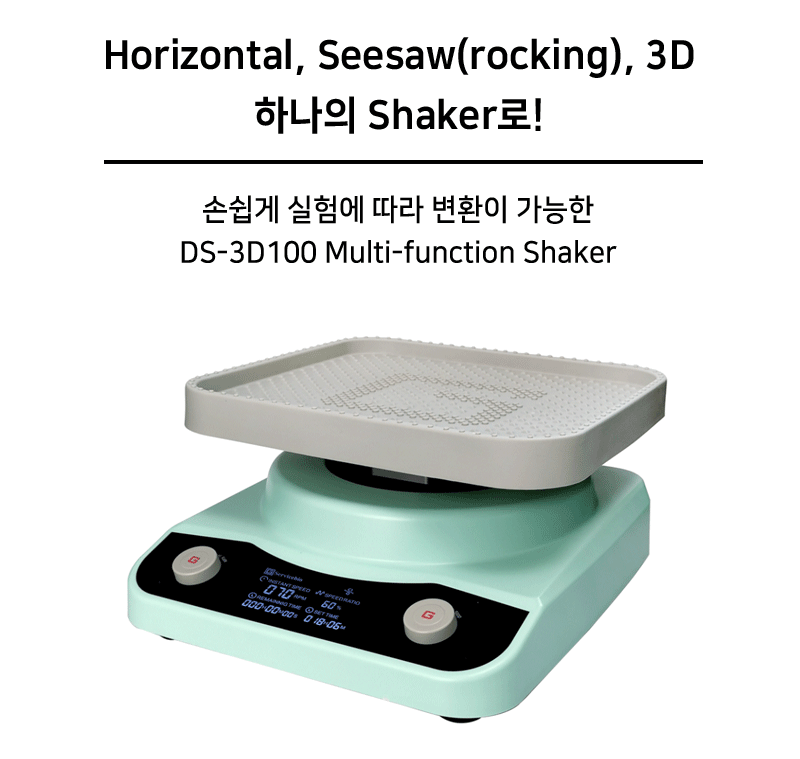

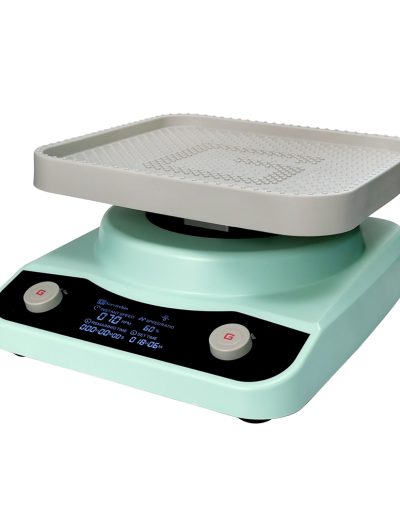

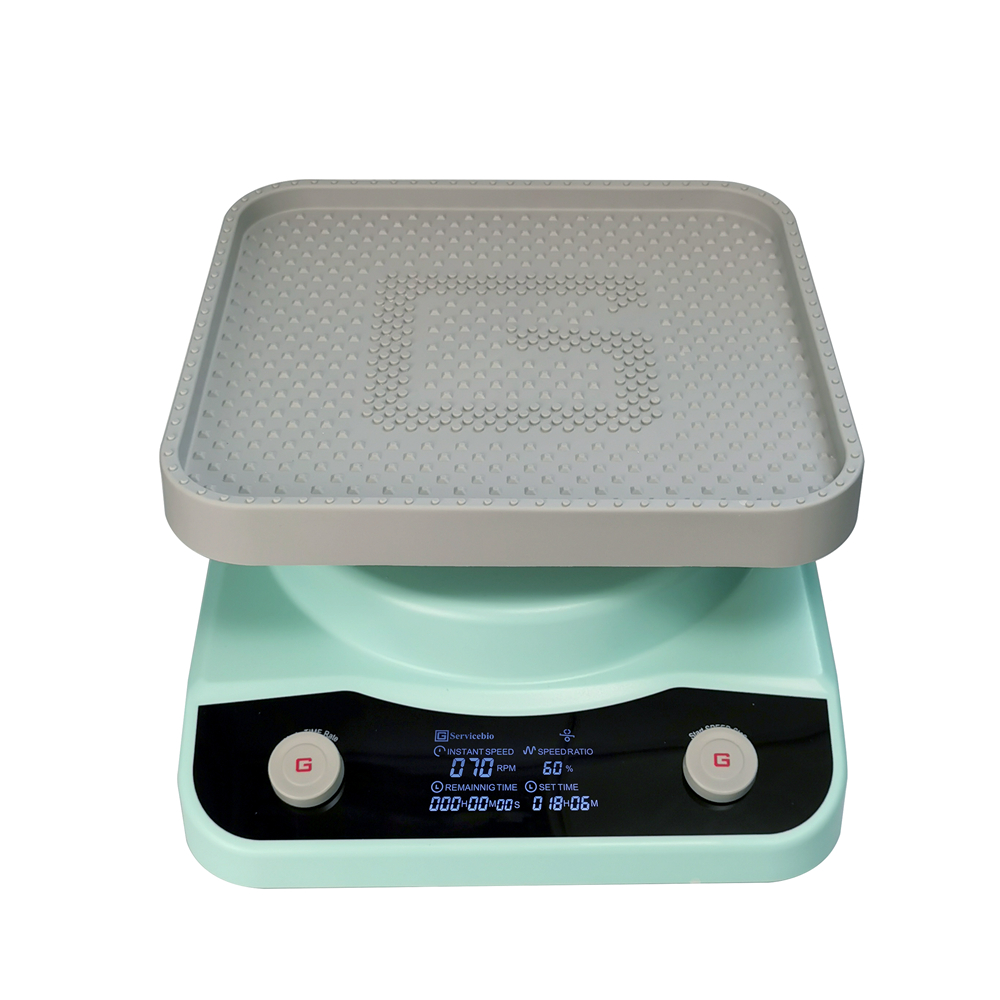

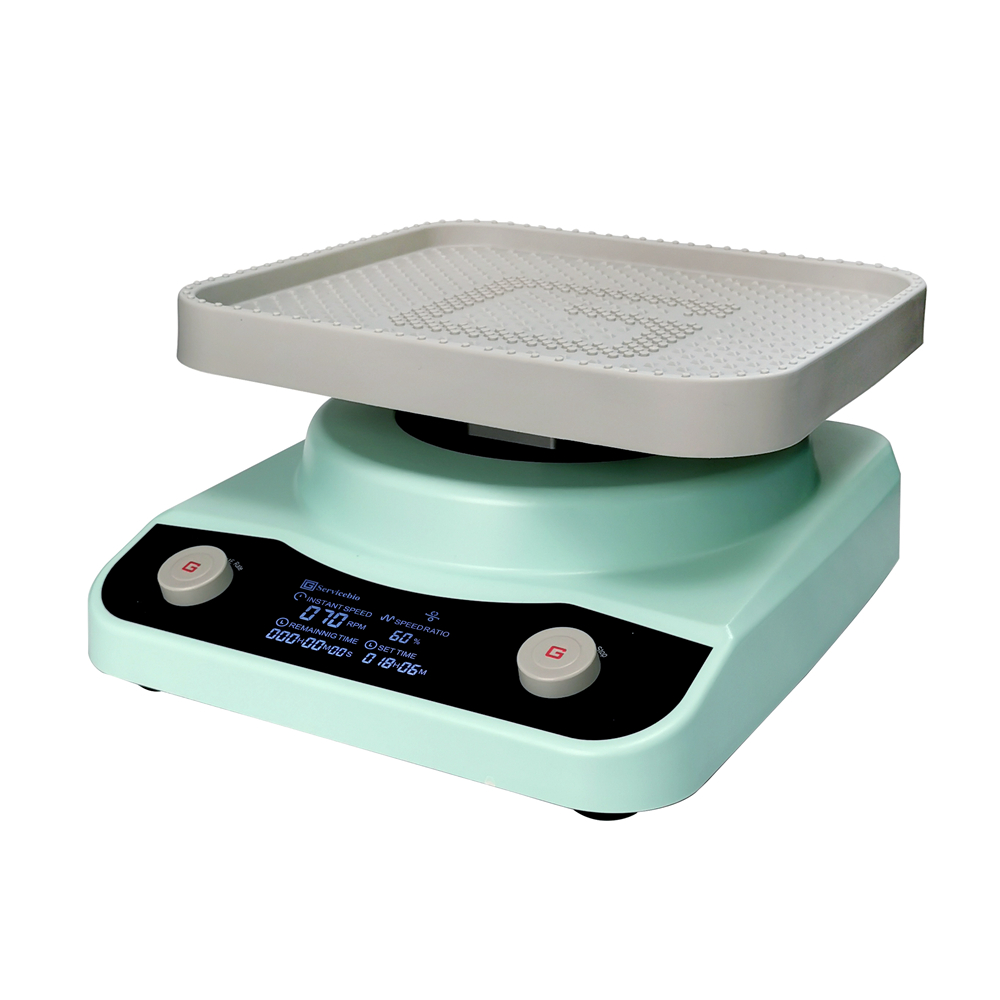

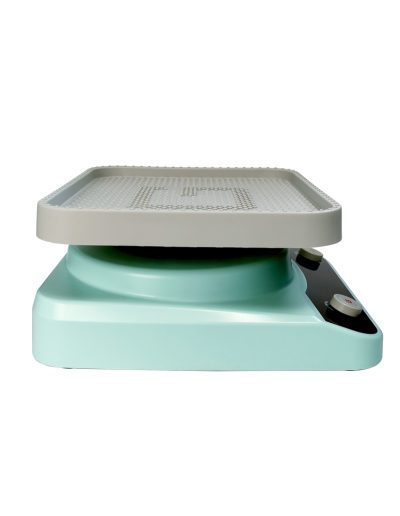

DS-3D100 3D Shaker

(Orbital/Rocking/3D)

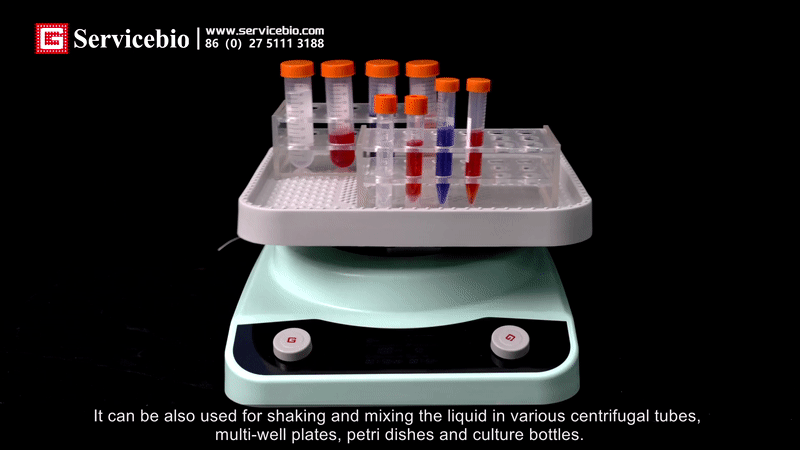

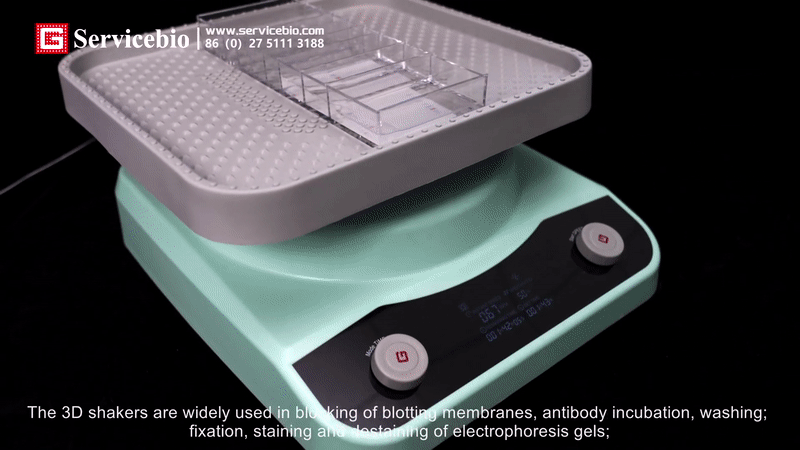

Shakers are commonly used in Western experiments such as blocking of blotting membranes, antibody incubation, washing, fixation, staining, and destaining of electrophoretic gels; they can also be used for shaking liquids in various centrifuge tubes, multi-well plates, petri dishes, and culture bottles. Mix well. The movement modes are horizontal, pendulum and three-dimensional composite, and the Servicebio shaker is equipped with LCD display, knob-type control keys and digital timing function.

견적 요청하기

Descriptions

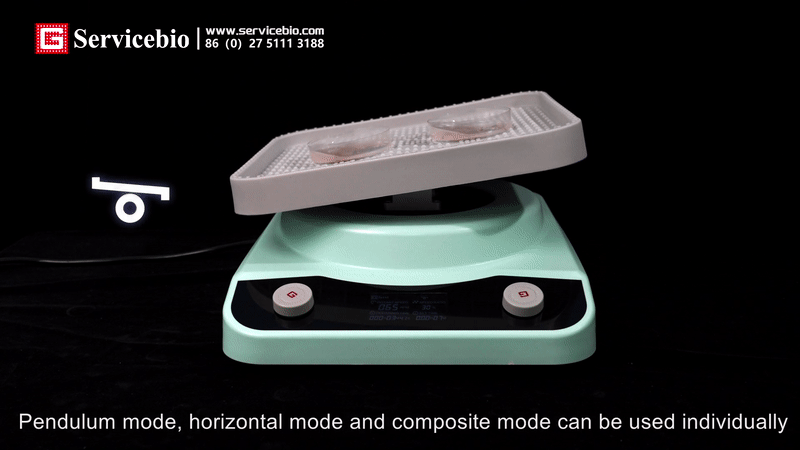

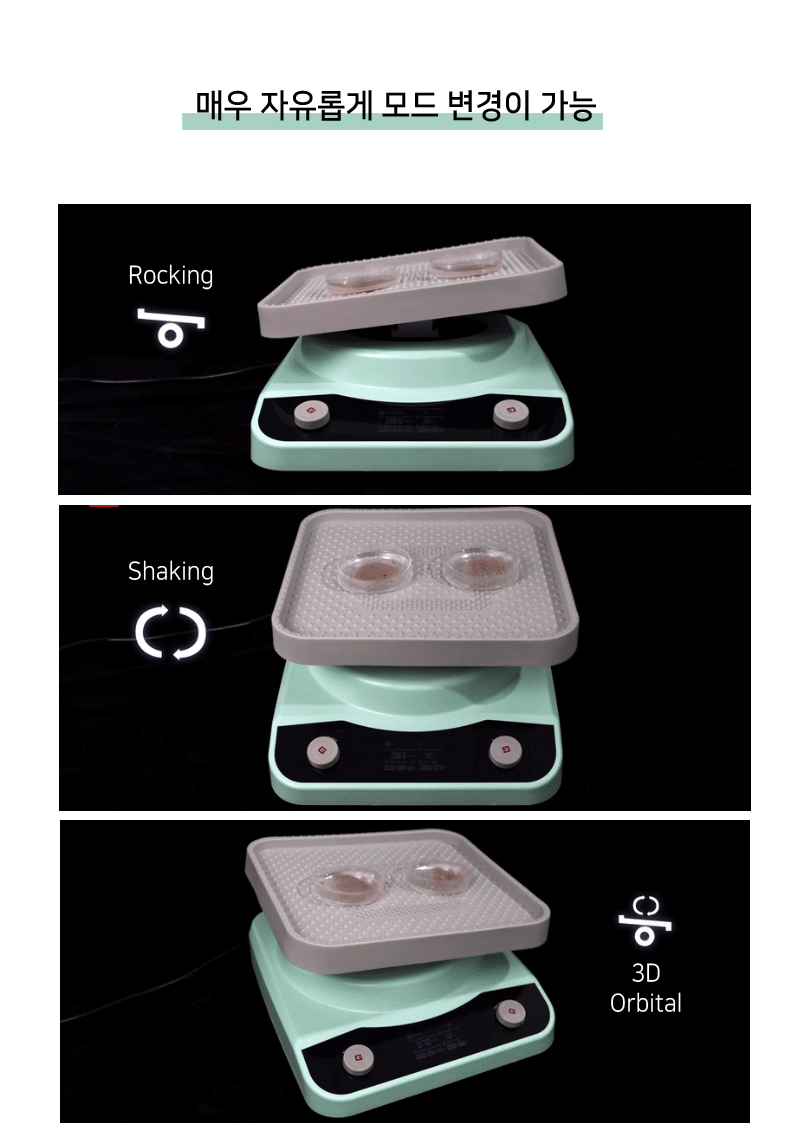

1. Pendulum(Seesaw) mode, horizontal(Orbital) mode and composite(3D) mode can be used alone ;

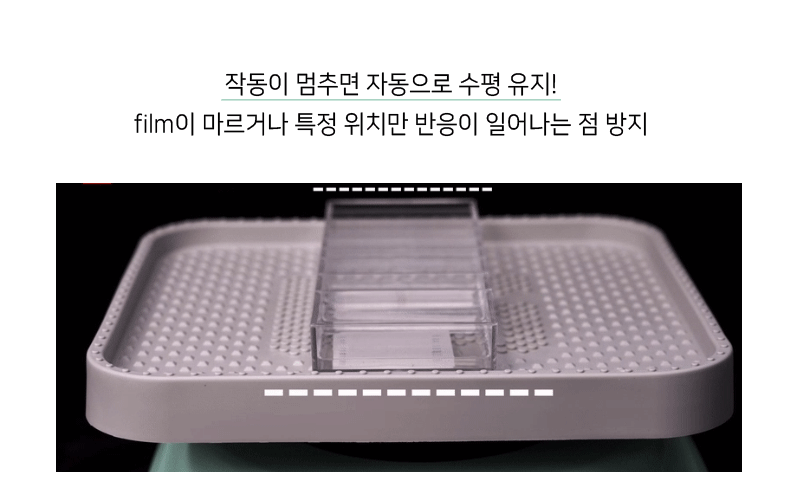

2. Automatic leveling function, it will automatically level after the operation of any mode ;

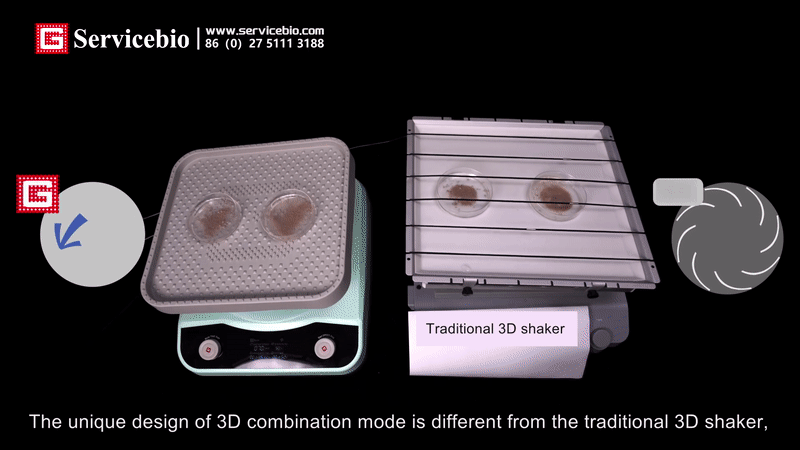

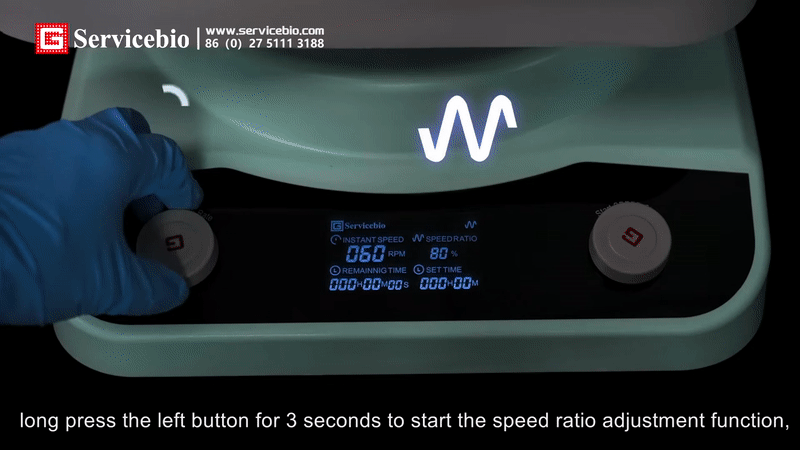

3. The compound operation mode can achieve the best effect by adjusting the relative operation speed of the level and the pendulum;

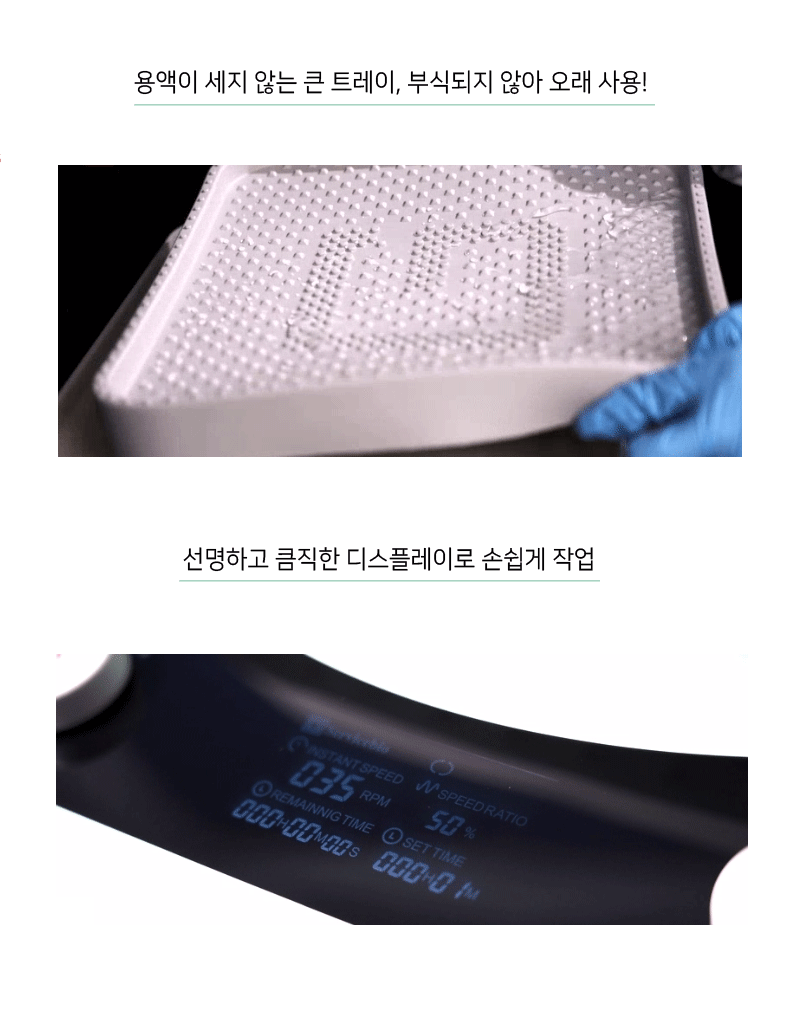

4. Using stepper motor , the speed is more accurate; the shell is integrally formed, leak-proof and impermeable; the bottom plate is treated with anti-rust treatment, which is more durable.

Specifications

Cat. No.	DS-3D100	DS-2H200 DS-2S100	SYC-P200 SYC-Z100	SYC-FP200 SYC-FZ100
Speed Range	Horizontal (Orbital) model : 5-100rpm, Pendulum (Rokcing/seesaw) model: 5-100 rpm	Horizontal (Orbital) model: 5-200rpm, Pendulum (Rokcing/seesaw) model: 5-100 rpm	Horizontal (Orbital) model: 0-200rpm, Pendulum (Rokcing/seesaw) model: 0-100 rpm	Horizontal (Orbital) model: 0-200rpm, Pendulum (Rokcing/seesaw) model: 0-100 rpm
Radius Of Gyration/Swing Angle	Radius of gyration in plane mode: 15mm, swing angle in swing mode: 10°	Radius of gyration in plane mode: 15mm, swing angle in swing mode: 10°	Radius of gyration in plane mode: 10mm, swing angle in swing mode: 20°	Radius of gyration in plane mode: 10mm, swing angle in swing mode: 20°
3D Operation	3D composite mode: 5-100 rpm, Speed ratio in 3D composite mode: 10%-100%	/	/	/
Automatic Leveling Function	leveling function	leveling function	leveling function	leveling function
Timing Range	0min-999h59min	0min-999h59min	0min-999h59min	0min-999h59min
Digital Display	Time, Speed, Digital display	Time, Speed, Digital display	Time, Speed, Digital display	Time, Speed, Digital display
Max. Load	5kg	5kg	2.5kg	2kg
Motor	Stepper motor	Stepper motor	Stepper motor	Stepper motor
Control Method	Program control chip	Program control chip	Program control chip	Program control chip

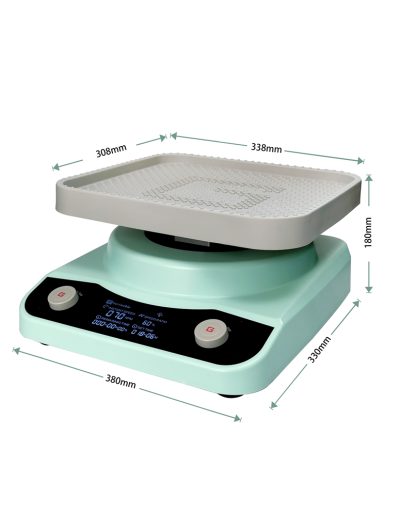

Tray Size	338*308mm	338*308mm	317*245mm	317*245mm
Beep Prompt	Beep prompt	Beep prompt	Beep prompt	Beep prompt
Input Voltage	AC100V/AC 240V 50Hz/60Hz	AC100V/AC 240V 50Hz/60Hz	AC100V/AC 240V 50Hz/60Hz	AC100V/AC 240V 50Hz/60Hz
Power	35W	20W	20W	20W
Fuse	250V/3A	250V/3A	/	/
Controller Size	35mm	35mm	35mm	35mm
Display Size	740*420mm	740*420mm	/	/

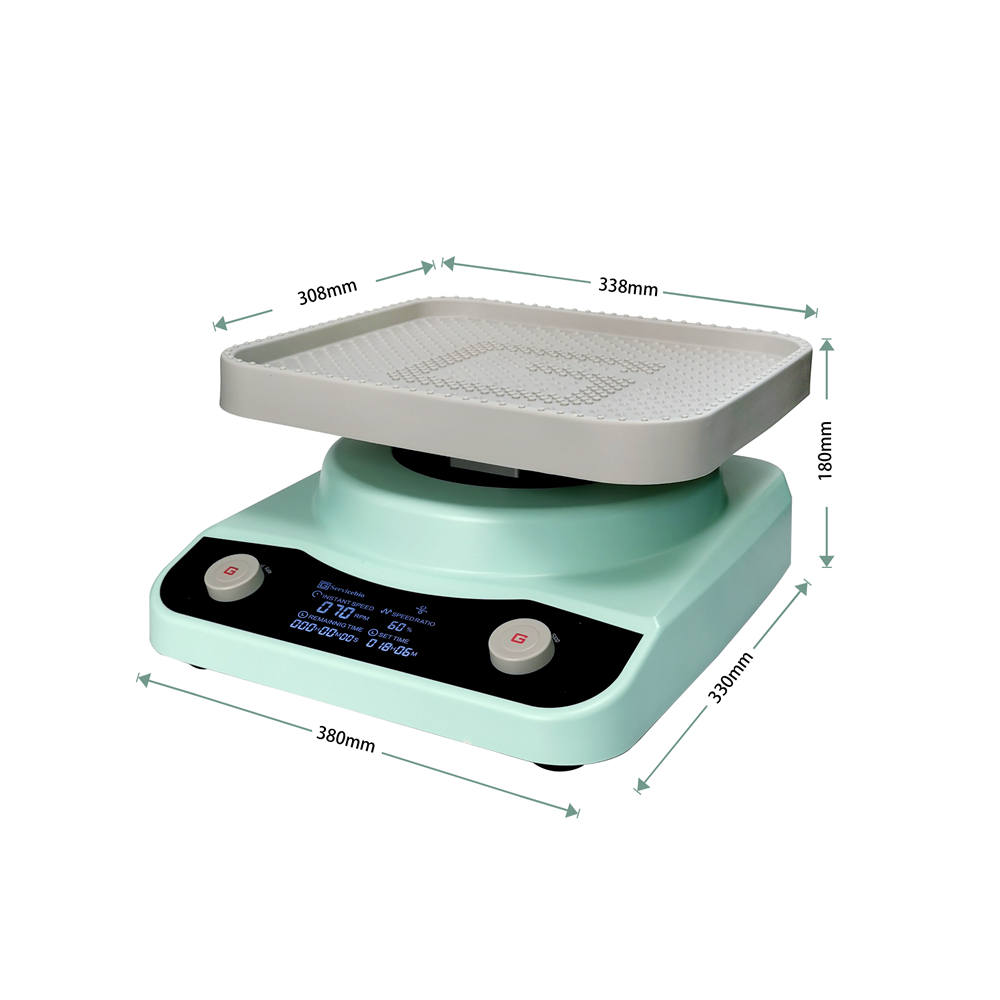

Overall Dimension	380330180mm	380330148mm 380330173mm	317245130mm 317245139mm	317245134mm 317245143mm
Net Weight	9.5kg	7.6kg/8.5kg	4.5kg	4.5kg
