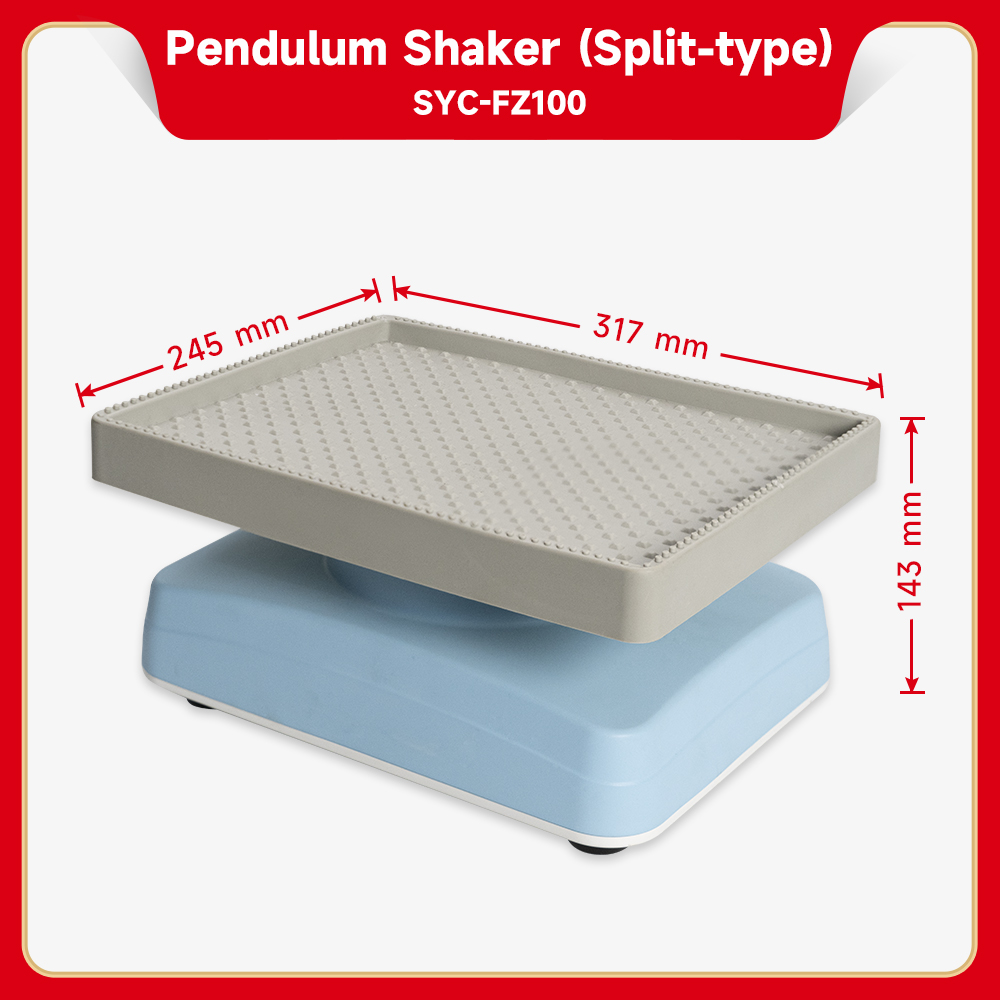

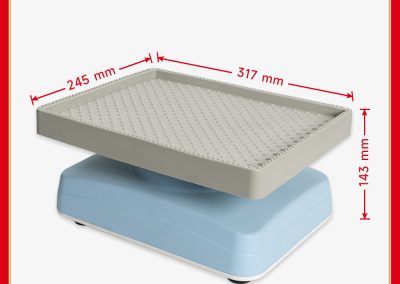

SYC-FZ100 Rocker
(Pendulum/ Seesaw)
- 분리형 설계: 본체와 컨트롤러가 분리되어 있어 냉장고, 인큐베이터, 크로마토그래피 캐비닛 등에 설치 가능
- 내부 방수 처리로 고습, 저온 등 다양한 환경에서 사용 가능
- 스테퍼 모터 사용으로 저소음, 고신뢰성 설계
- 타이머 기능 및 전원 차단 시 메모리 기능 탑재
- 진자형 모델(SYC-FZ100)은 자동 수평 조절 기능 포함
Descriptions

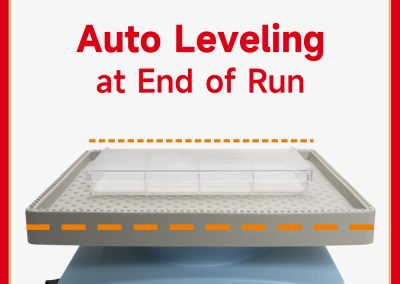

1.The tray automatically stops in a horizontal position when the machine is turned off.

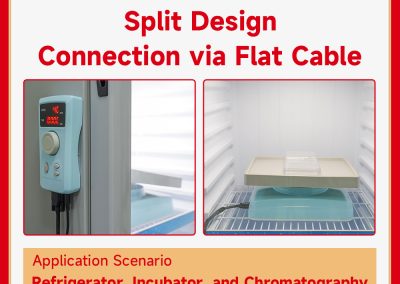

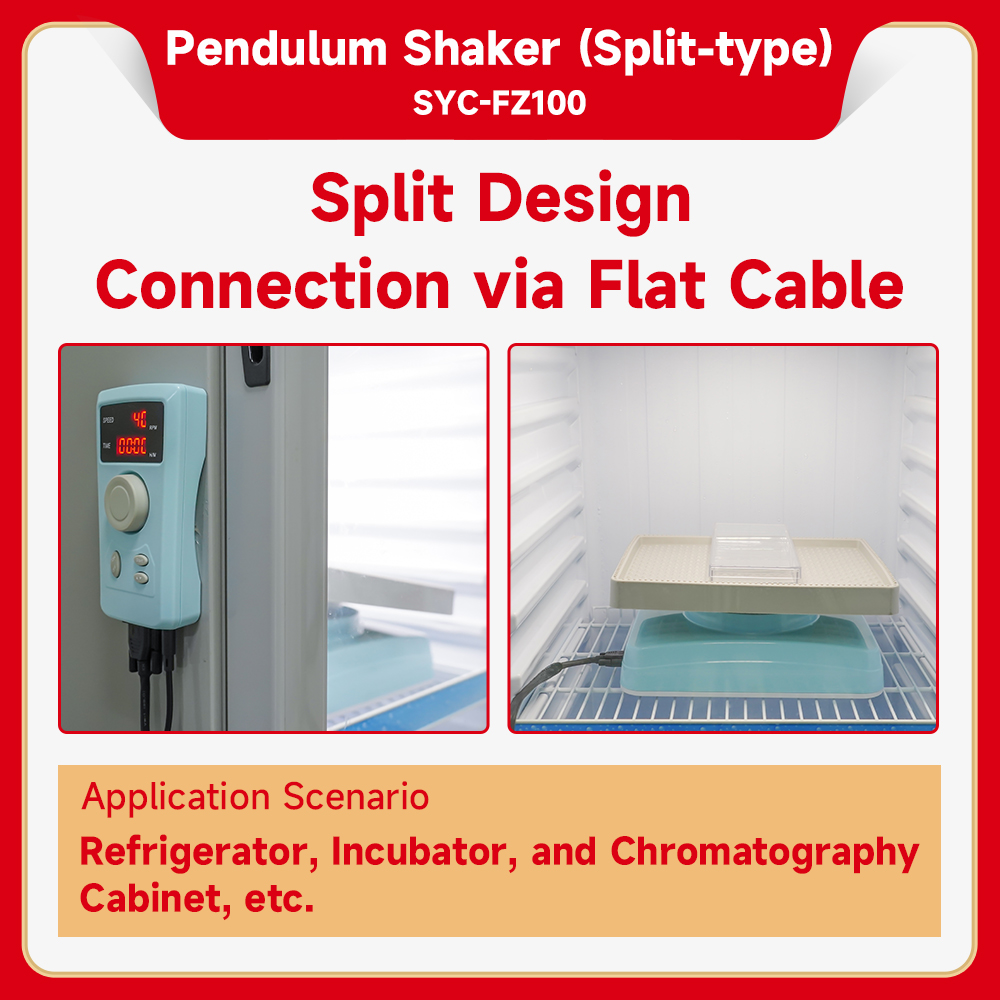

2.Split design, with a flat cable connecting the controller, allowing the controller to be placed in a refrigerator, incubator, or chromatography cabinet.

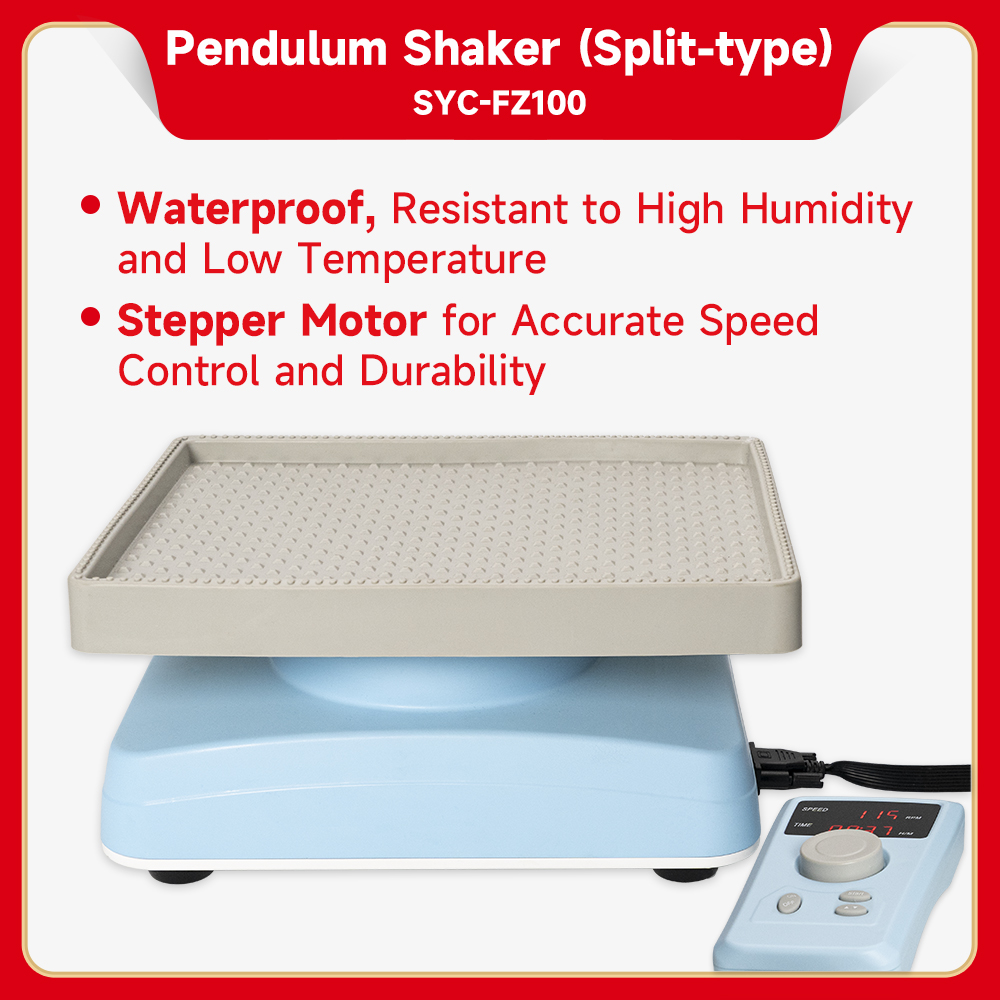

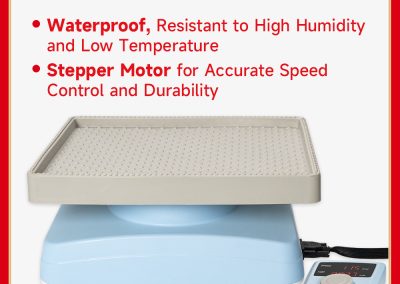

3.Internal waterproof treatment, suitable for high humidity, low temperature, and other environments.
4.Equipped with a stepper motor for accurate speed control and durability.

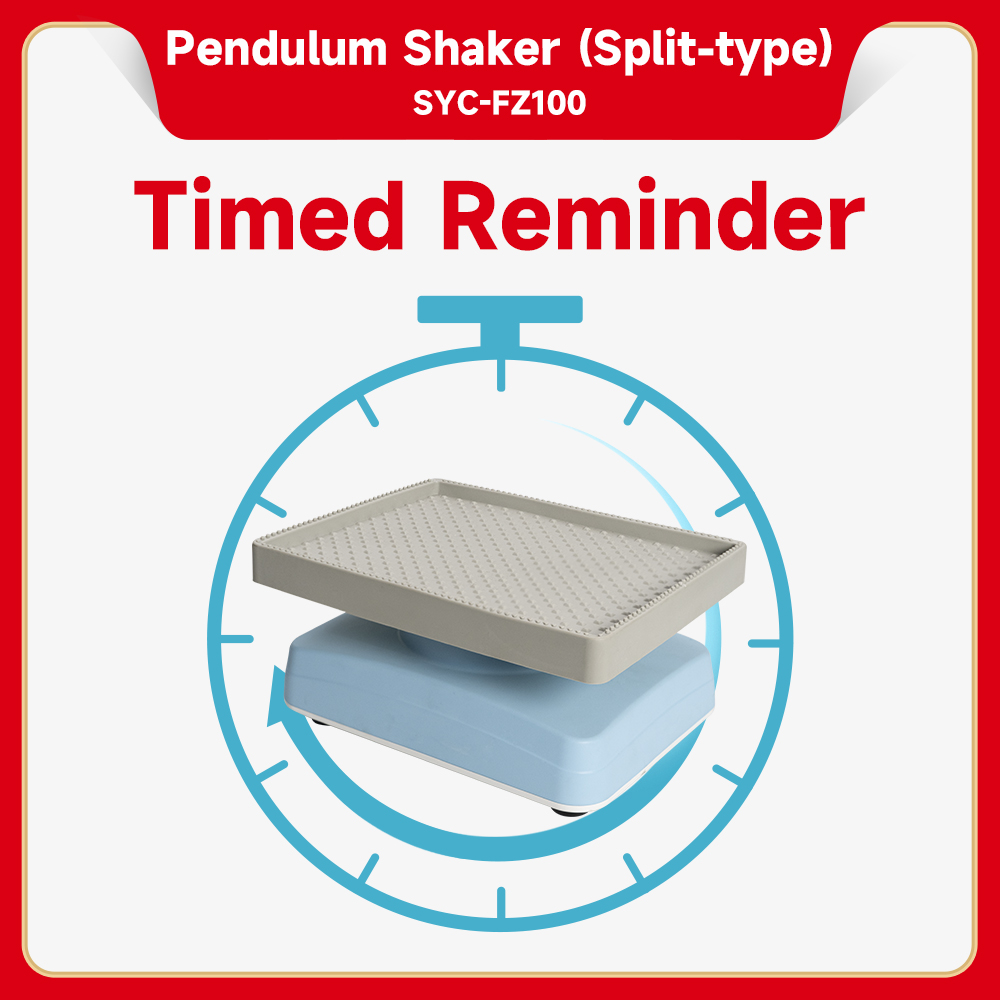

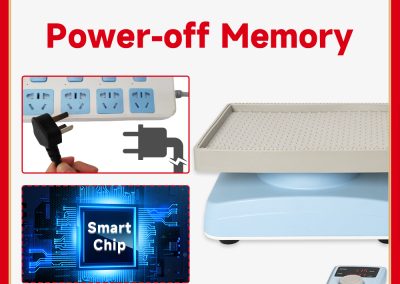

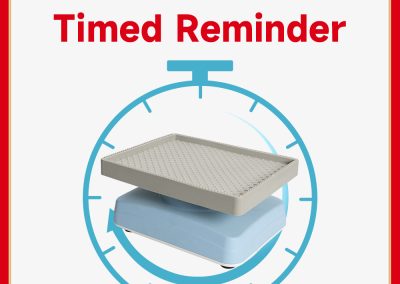

5.Features a timer reminder function and power-off memory function.
Specifications
|
Cat. No. |
DS-3D100 |
DS-2H200 DS-2S100 |
SYC-P200 SYC-Z100 |
SYC-FP200 SYC-FZ100 |
|
Speed Range |
Horizontal model: 5-100rpm, Pendulum model: 5-100 rpm |
Horizontal model: 5-200rpm, Pendulum model: 5-100 rpm |
Horizontal model: 0-200rpm, Pendulum model: 0-100 rpm |
Horizontal model: 0-200rpm, Pendulum model: 0-100 rpm |
|
Radius Of Gyration/Swing Angle |
Radius of gyration in plane mode: 15mm, |
Radius of gyration in plane mode: 15mm, |
Radius of gyration in plane mode: 10mm, |
Radius of gyration in plane mode: 10mm, |
|
3D Operation |
3D composite mode: 5-100 rpm, Speed ratio in 3D composite mode: 10%-100% |
/ |
/ |
/ |
|
Automatic Leveling Function |
leveling function |
leveling function |
leveling function |
leveling function |
|
Timing Range |
0min-999h59min |
0min-999h59min |
0min-999h59min |
0min-999h59min |
|
Digital Display |
Time, Speed, Digital display |
Time, Speed, Digital display |
Time, Speed, Digital display |
Time, Speed, Digital display |
|
Max. Load |
5kg |
5kg |
2.5kg |
2kg |
|
Motor |
Stepper motor |
Stepper motor |
Stepper motor |
Stepper motor |
|
Control Method |
Program control chip |
Program control chip |
Program control chip |
Program control chip |
|
Tray Size |
338*308mm |
338*308mm |
317*245mm |
317*245mm |
|
Beep Prompt |
Beep prompt |
Beep prompt |
Beep prompt |
Beep prompt |
|
Input Voltage |
AC100V/AC 240V 50Hz/60Hz |
AC100V/AC 240V 50Hz/60Hz |
AC100V/AC 240V 50Hz/60Hz |
AC100V/AC 240V 50Hz/60Hz |
|
Power |
35W |
20W |
20W |
20W |
|
Fuse |
250V/3A |
250V/3A |
/ |
/ |
|
Controller Size |
35mm |
35mm |
35mm |
35mm |
|
Display Size |
740*420mm |
740*420mm |
/ |
/ |
|
Overall Dimension |
380*330*180mm |
380*330*148mm 380*330*173mm |
317*245*130mm 317*245*139mm |
317*245*134mm 317*245*143mm |
|
Net Weight |
9.5kg |
7.6kg/8.5kg |
4.5kg |
4.5kg |
