SMB-H Dry Bath (Heating)

This product is an advanced microcomputer-controlled dry bath incubator with a wide selection of metal blocks suitable for various test tubes, which can be widely used for sample preservation, enzymes preservation and reaction, pre-denaturation of DNA amplification and electrophoresis, serum coagulation, etc.

견적 요청하기

Descriptions

1. Temperature control range: 0 ℃ -100 ℃

2. Timing range: 1 min-99 h 59 min

3. Heating time: (room temperature rises to 100°C) ≤ 12 min

4. Temperature control accuracy: ≤±0.3℃

5. Temperature uniformity: ≤±0.5℃

Basic Parameters

Model	SMB-H
Standard Module	A: 1.5 mL X 35
Optional Modules	B: 0.5 mL X 54
	C: 0.2 mL X 96
	D: 2.0 mL X 35
	E: 0.2 mL X 32+1.5 mL X 25
	F: 5 mL X 24
	G: 15 mL X 12 (high lid)
	H: 50 mL X 6 (high lid)
	I: 0.2 mL X 96 ( ELISA plate)
	J: 0.2 mL X 32+0.5 mL X 10+1.5 mL X 15

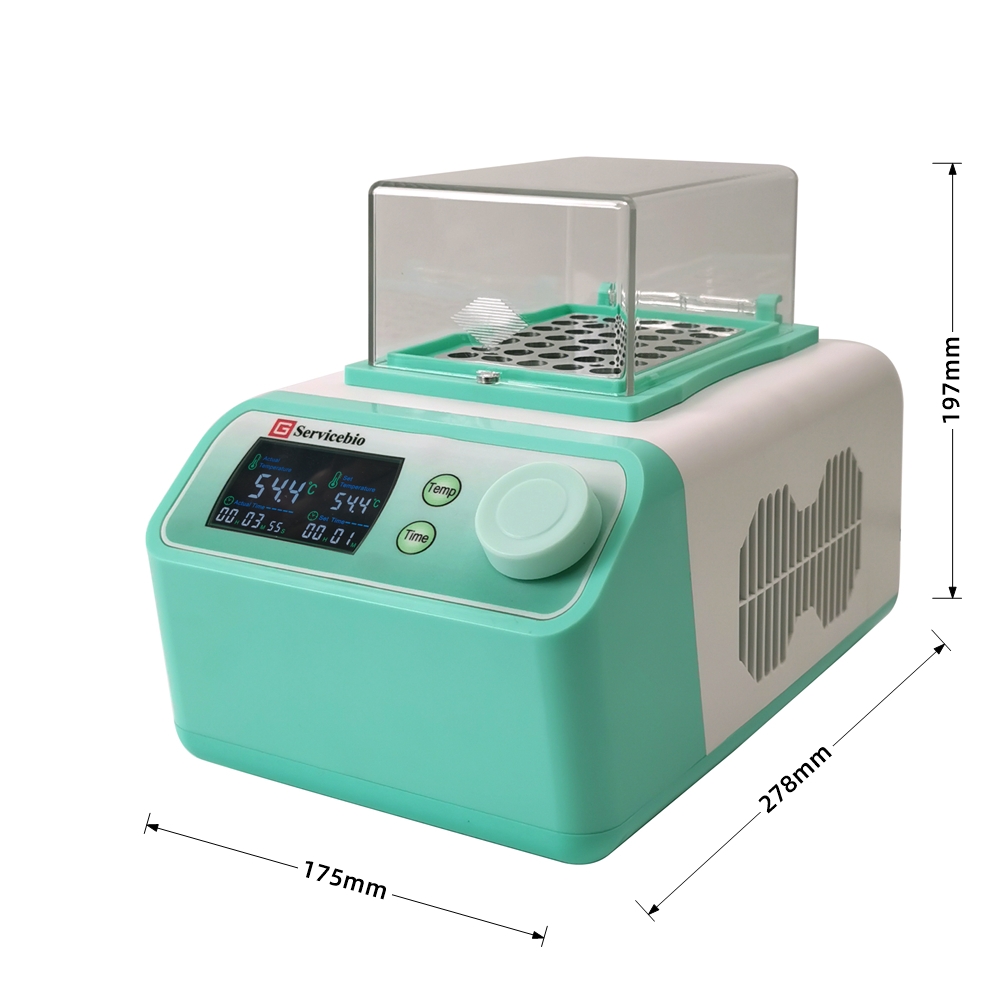

Dimensions (mm)	175x278x197
Weight (kg)	2.2

Note: Metal modules can be customized according to user requirements, if you need customized modules, please contact the supplier.

Normal Working Conditions:

Ambient temperature: 10°C~ 30°C
Relative humidity: ≤ 70%
Input power: AC100 ~ 240
AC frequency: 50 Hz/60 Hz
Output power: 24 V 6.25 A 150 W
Note: Before using the instrument, please confirm whether the working conditions meet the above requirements

Transportation And Storage Conditions:

Ambient temperature: -20°C ~ +55°C
Relative humidity: <80%

Specifications

Product Model	SMB-H	SMB-C	SMB-PC
Temperature Control Range	Room Temperature+5℃-100℃	0-100℃	0-100℃
Timing Range	1 Min-99 h 59 min	1 Min-99 h 59 min	1 Min-99 h59 min
Heating Time	Room Temperature -100℃≤12 min	Room Temperature -100℃≤12 min	Room Temperature -100℃≤12 min
Temperature Control Accuracy	≤±0.3℃	≤±0.3℃	≤±0.3℃
Cooling Time	–	The Room Temperature Drops By 20℃≤15 min	The Room Temperature Drops By 20℃≤15 min
Temperature Uniformity	≤±0.5℃	≤±0.5℃	≤±0.5℃
Programming Function	–	–	Programmable
Input Voltage	100 V~240 V 50 Hz/60 Hz	100 V~240 V 50 Hz/60 Hz	100 V~240 V 50 Hz/60 Hz
Power	150 W	150 W	150 W
Dimensions	175x278x197 (mm)	175x278x197 (mm)	175x278x197 (mm)
Net Weight	2.2 kg	3.3 kg	3.3 kg
