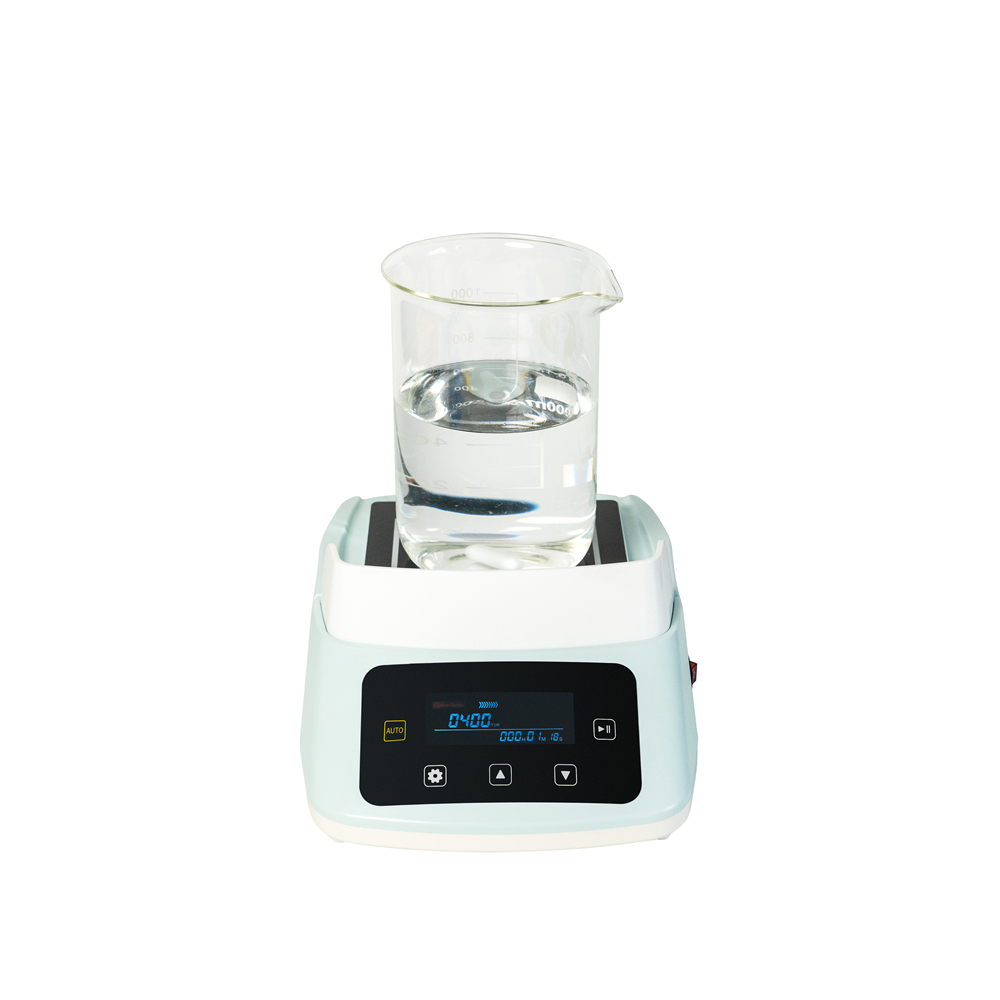

SMS-200 Magnetic Stirrer (Smart)
The magnetic stirrer is a laboratory instrument used for liquid mixing, mainly for stirring or simultaneously heating and stirring low-viscosity liquids or solid-liquid mixtures. Its basic principle is to use the principle of same-sex repulsion and opposite-sex attraction of the magnetic field to push the magnetically placed stir bar in the container to perform circular motion, thereby achieving the purpose of stirring the liquid. With the heating temperature control system, it can heat and control the sample temperature according to specific experimental requirements, maintain the required temperature conditions for experimental conditions, and ensure that the liquid mixing meets the experimental requirements.
Descriptions

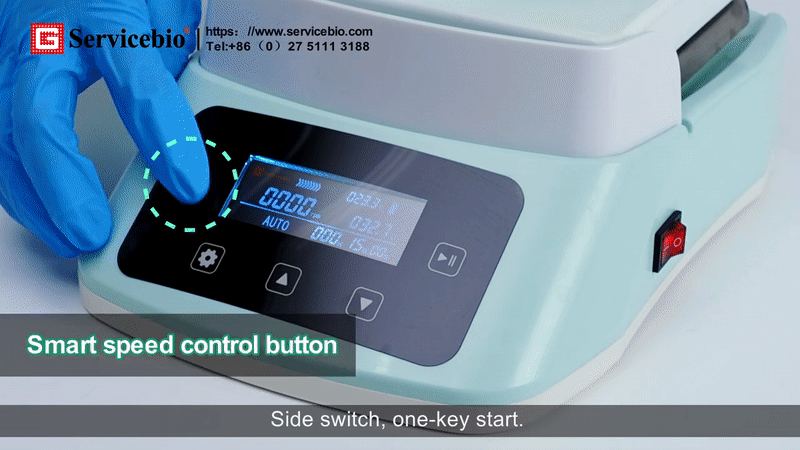

1. One-click startup, adjusting to suitable operating speeds automatically.

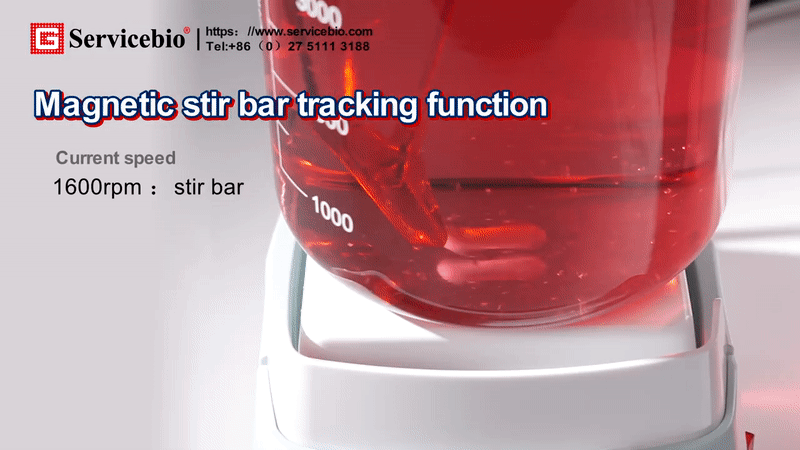

2. The instrument utilizes a new magnet tracking feature to ensure accurate and consistent mixing speeds.
3. Intelligent anti-skipping during operation. When the skipping occurs during operation, the device will automatically stop turning, search for the probe again, and automatically reduce the rotating speed after sensing the skipping.
4. Controlled by chip and PCB board, the speed control is accurate.
Product configuration list
|
Product Name |
Classic Smart Model |
Smart Heating Model |
|
Cat. No. |
SMS-200 |
SMS-200A |
|
Work Plate Size |
140mm×140mm |
150mm×150mm |
|
Heating And Stirring Function |
– |
Yes |
|
Intelligent Speeding Function |
Yes |
Yes |
|
Work Plate Material |
Plastic Plate |

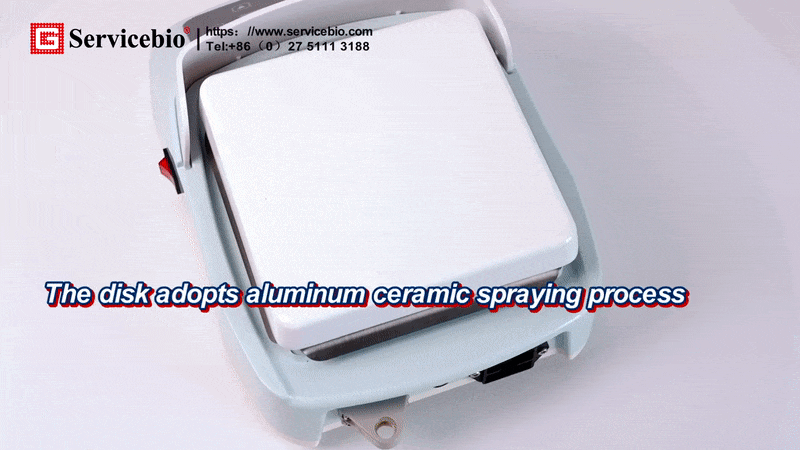

Cast Aluminum Sprayed Ceramics |
|
Speed Range |
100-2000rpm |
100-2000rpm |
|
Heating Temperature Range |
– |
RT-300℃ |
|
Temperature Control Accuracy |
– |
±1℃(below 100℃), ±1%(above 100℃) |
|

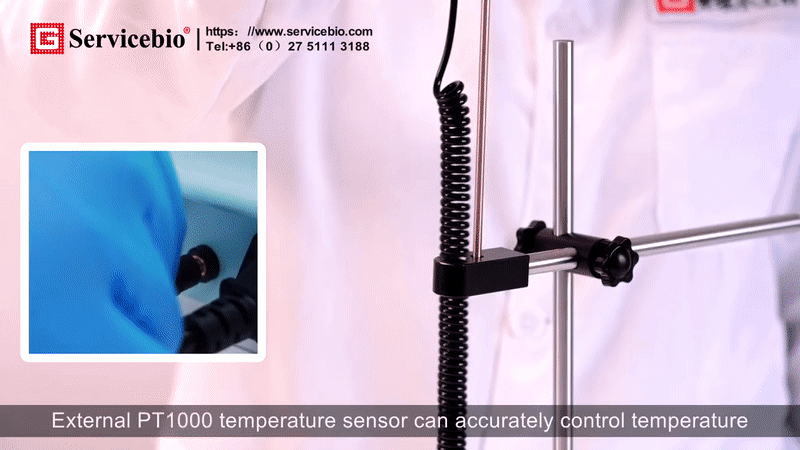

External Temperature Sensor |
– |
PT1000 |
|
Overheating Protection |
– |
320℃ |
|

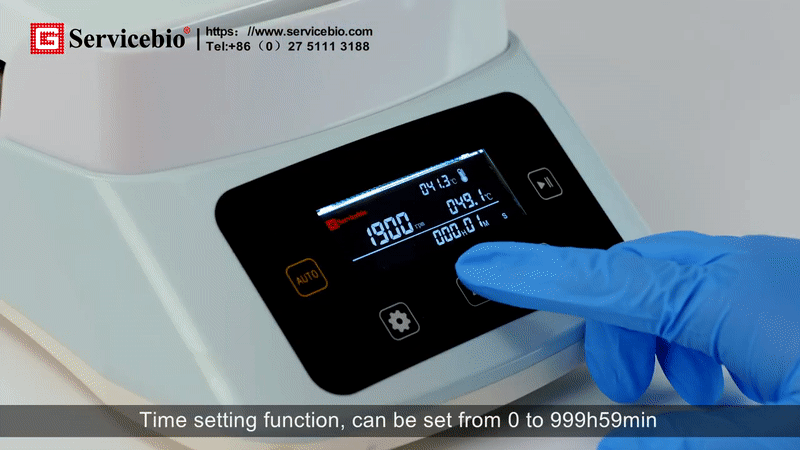

Timing Range |
1-999h60min |
1-999h60min |
|
Number of Stirring Points |
1 |
1 |
|
Maximum Stirring Capacity |
5L |
5L |
|
Maximum Size of Stir Bar |
50 mm |
50 mm |
|
Input Voltage |
220V 50/60Hz |
220V 50/60Hz |
|
Output Power |
10W |
570W |
|
Thermal Output Power |
– |
550W |
|
Dimension |
290*195*68mm |
290*195*440mm |
|
Net Weight |
0.79kg |
2.4kg |
|
Motor Type |
Brushless DC Motor |
Brushless DC Motor |
|
Speed Control Accuracy |
100rpm |
100rpm |
|
Residual Temperature Warning |
– |
50℃ |
|
Working Temperature And Humidity |
5-40℃, 80%rh |
5-40℃, 80%rh |
