SPW-DSE Power Supply (Dual, Programmable)

This product is a rectifier device that converts alternating current into direct current. It can convert alternating current into controllable constant voltage and constant current direct current to meet the needs of experimental production such as electrophoresis. It is widely used in biology, medicine and other fields, such as nucleic acid gel electrophoresis, Protein gel electrophoresis, Western Blot protein transfer and other experiments.

견적 요청하기

Descriptions

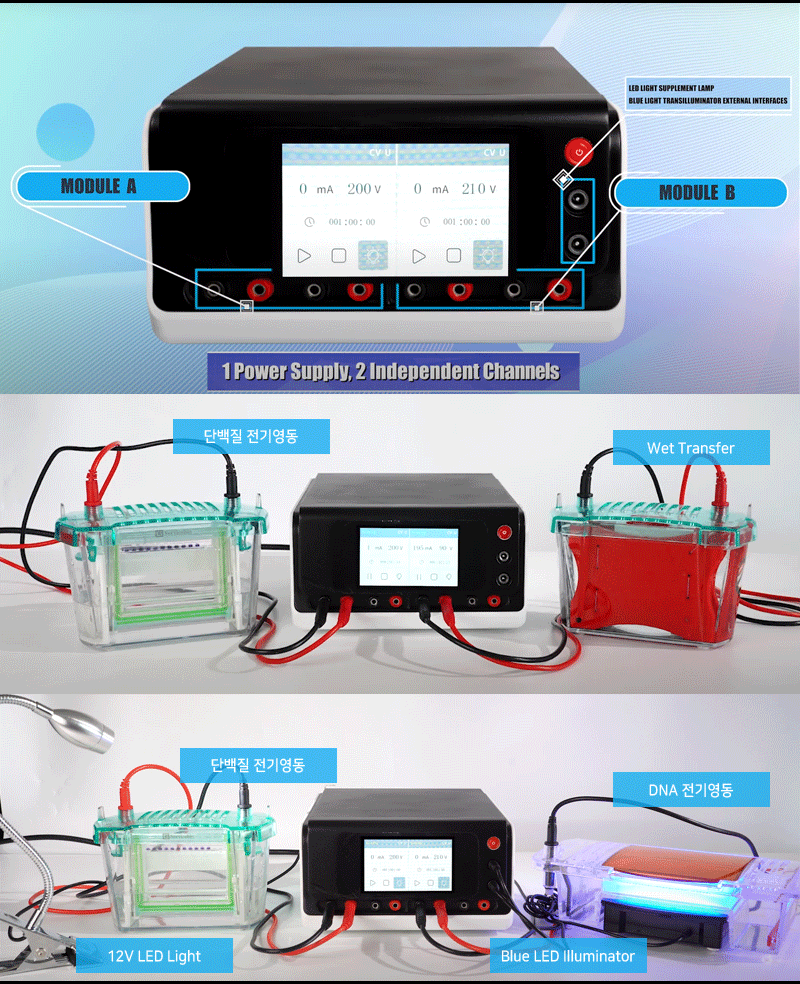

1.Completely independent dual outputs, with the ability to set parameters separately.

2.Programmable function, capable of setting four working modes: constant voltage, constant current, voltage gradient, and current gradient.

3.Additional two sets of 12V outputs, suitable for use with blue light illuminator, gel loading lamps, and can be controlled separately.

4.Equipped with multiple abnormality alerts, including overvoltage, overcurrent, overload, variable load, and no load.

Specifications

Item Code	SPW-DSE	SPW-6S
Channel	Independent dual channels, a total of 6 groups of output ports.	Single channel, a total of 6 groups of output ports.
Terminal	The left and right sets of independent dual power supply outputs can also be independently controlled without interfering with each other.	Output port parallel output.
Temperature	4-35℃	4-40℃
Parameters	500V, 500mA, 250w	600V, 600mA, 300W
Voltage Range	6-500V	6-600V
Current Range	6mA-500mA	6mA-600mA
Type	Constant voltage, constant current, gradient voltage, gradient current	Constant voltage, constant current, gradient voltage, gradient current
Timing Range	0-99h60min	0-99h60min
Pause/Resume Function	YES	YES
Programmable method	Gradient voltage, gradient current, three steps	Gradient voltage, gradient current, three steps
Power off memory function	YES	YES
Screen size	4 inches	4 inches
Input power	AC 180-240V/110-120V, 50/60HZ	AC 180-240V/110-120V, 50/60HZ
Size	265215120mm	265215120mm
Net Weight	2.25KG	1.8kg
