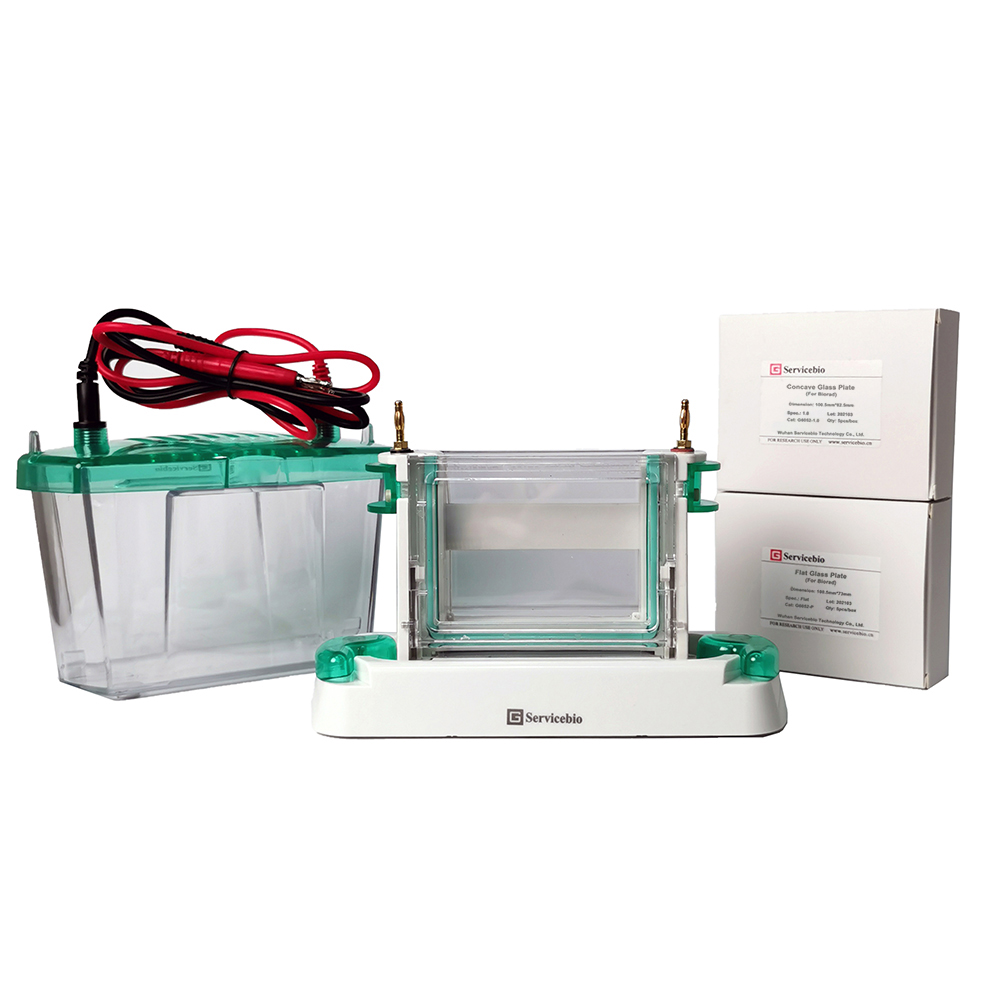

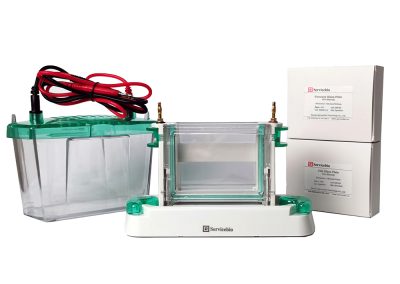

SVE-2 Protein Electrophoresis System
전기영동 기술은 일반 생명과학 뿐만아니라 analytical chemistry, clinical chemistry, toxicology, pharmacology, immunology, food chemistry 같은 다양한 분야에 사용됩니다.
주로 전기영동에 의해 작은 분자나 펩타이드를 분리하여 분석할 수 있으며, 일반적으로 단백질, 핵산, 효소 및 바이러스 세포를 연구하는데 사용되고 있습니다.
Descriptions

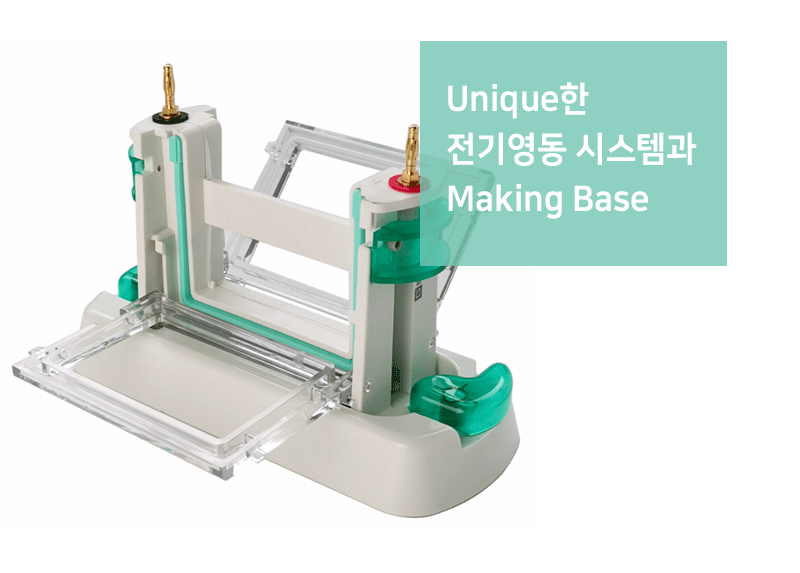

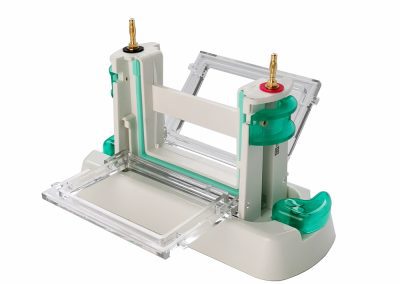

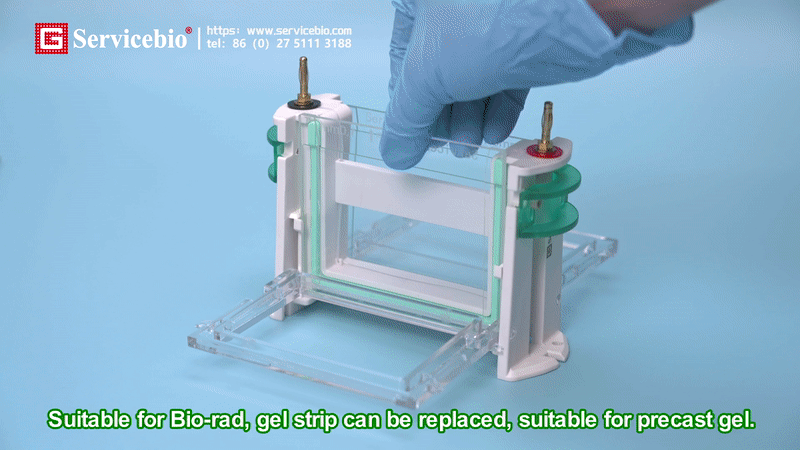

a. Using the in-situ gel-making mode, the gel-making and running process can be completed without disassembling and assembling the electrophoresis glass, and it is compatible with the running and electrophoresis requirements of the pre-cast gel products of this model.
b. The glue base is specially designed and locked by non-spring buckles to avoid glue leakage caused by insufficient spring pressure or aging.
c. The uniquely designed card plate is matched with the whole gland, so that the glass plate can be sealed by squeezing the sealing strip, avoiding the phenomenon of liquid leakage due to the side card not being lifted in place.
d. It can be adapted to glass plates and glue-making combs with various thickness intervals (1.5mm, 1mm , 0.75mm) to meet the needs of different sample volumes.

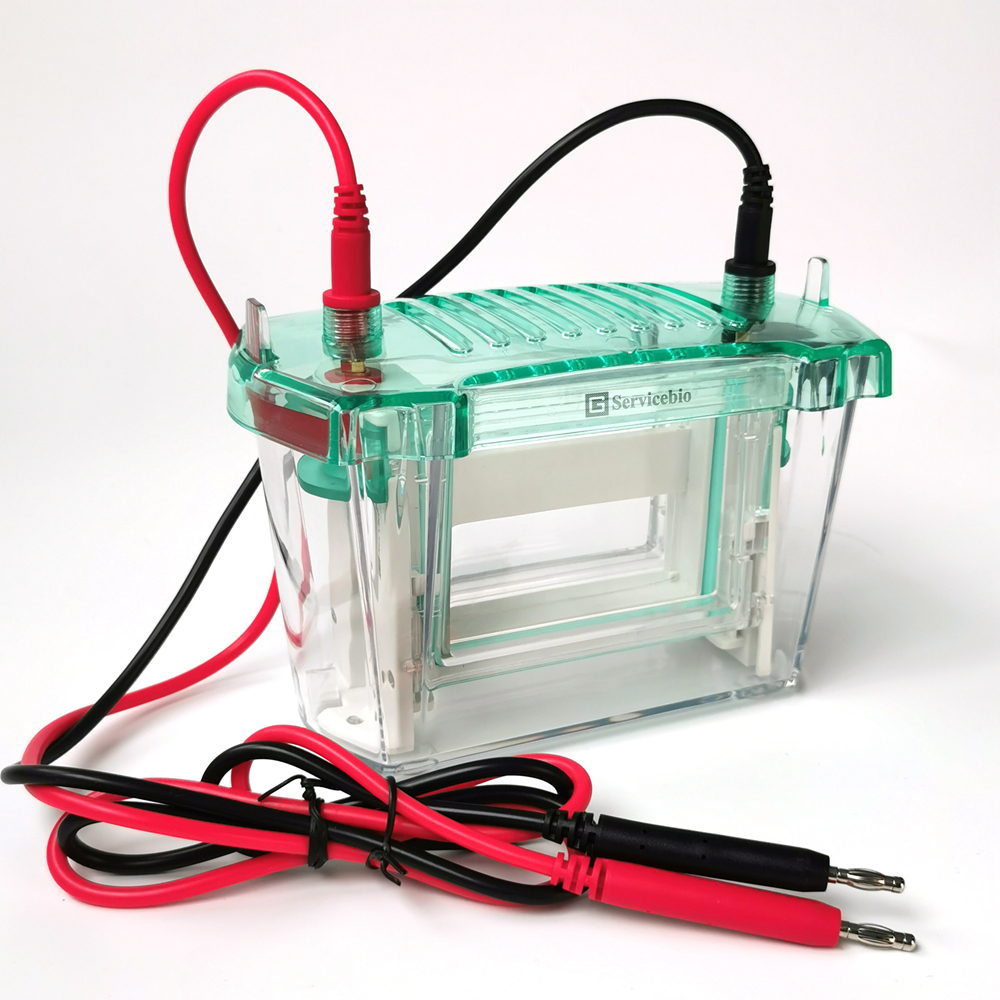

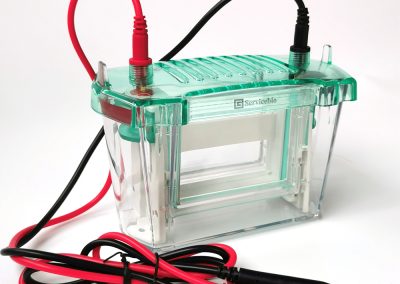

e. This electrophoresis instrument requires less electrophoresis buffer, and a minimum of 300mL can complete electrophoresis experiments.
f. Can be used with SVT-2 transfer electrophoresis tank..
Specifications
|
SVE-2 |
SVT-2 |
|
|
Dimensions (L*W*H) mm |
185x108x125 |
185x108x125 |
|
Gel size/transfer size (mm) |
Gel size 83×73 |
Transfer size 70×90 |
|
Maximum volume of buffer (ml) |
500 |
500 |
Product configuration list
|
serial number |
name |
quantity |
|
1 |
Electrophoresis scaffold body |
1 set |
|
2 |
Gel base |
1 set |
|
3 |
Electrophoresis box |
1 set |
|
4 |
1.0mm electrophoretic glass |
2 sets |
|
5 |
1.5mm electrophoretic glass |
2 sets |
|
6 |
1.0mm 11 tooth sample adding comb |
2 pcs |
|
7 |
1.5mm 10-tooth sampling comb |
2 pcs |
|
8 |
Glass replacement plate |
1 pcs |
|
9 |
Gel cutting board |
3 pcs |
|
10 |
Prefabricated gel seal |
2 pcs |
