SVT-2 Wet Transfer System
전기영동 기술은 일반 생명과학 뿐만아니라 analytical chemistry, clinical chemistry, toxicology, pharmacology, immunology, food chemistry 같은 다양한 분야에 사용됩니다.
주로 전기영동에 의해 작은 분자나 펩타이드를 분리하여 분석할 수 있으며, 일반적으로 단백질, 핵산, 효소 및 바이러스 세포를 연구하는데 사용되고 있습니다. Wet Transfer 방식은 기존 전기영동 tank를 이용해 충분히 buffer가 있는 상태에서 Protein이나 Nucleic acids 등을 gel에서 membrane으로 이동시키는 것입니다.
Descriptions
a. Double plate structure, can be used with SVE-2 electrophoresis tank.
b. The tank of the instrument is integrated injection molding with high transparency polycarbonate, it’s corrosion resistance, high transparency, consistent performance, etc..
c. The positive and negative electrodes of the transfer clip are distinct, with a handle function, which is easy to operate.
d. High transfer efficiency, transfer time is about 20-40min.
e. Strong structure can be synchronized with the ice bath cooling to avoid interference caused by overheating, so as to ensure reliable experimental results.
Operation Process
1 Preparation
Prepare 6 pieces of 7x9cm thin transfer membrane filter paper or 2 pieces of thick filter paper of the same specification in advance, and 1 piece of 7x9cm PVDF membrane (currently, the membrane with a pore size of 0.45μm is used for proteins greater than 20kda, and the membrane with a pore size of 0.2μm is used for proteins less than 20kda).
2 Activation
The PVDF membrane needs to be activated with methanol for 2 min before use.
3 Installation

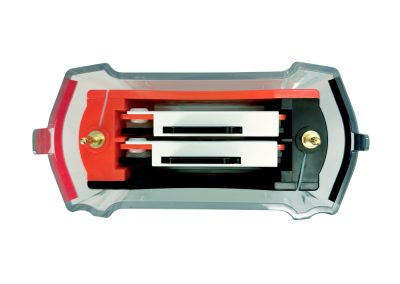

According to the order of ‖ positive electrode (+) > sponge > filter paper > transfer film > gel > filter paper > sponge > negative electrode (-) ‖, place the transfer material in the transfer clip and remove the air bubbles. The red side is the positive direction, and the black side is the negative side. Place the transfer clip into the transfer core in the direction of red to red and black to black. The transfer core can hold two transfer clips at the same time.
4 Power-on transfer
Connect the electrophoresis power supply, set the transfer conditions, and start transferring the membrane.
Specifications
|
SVE-2 |
SVT-2 |
|
|
Dimensions (L*W*H) mm |
185x108x125 |
185x108x125 |
|
Gel size/transfer size (mm) |
Gel size 83×73 |
Transfer size 70×90 |
|
Maximum volume of buffer (ml) |
500 |
500 |

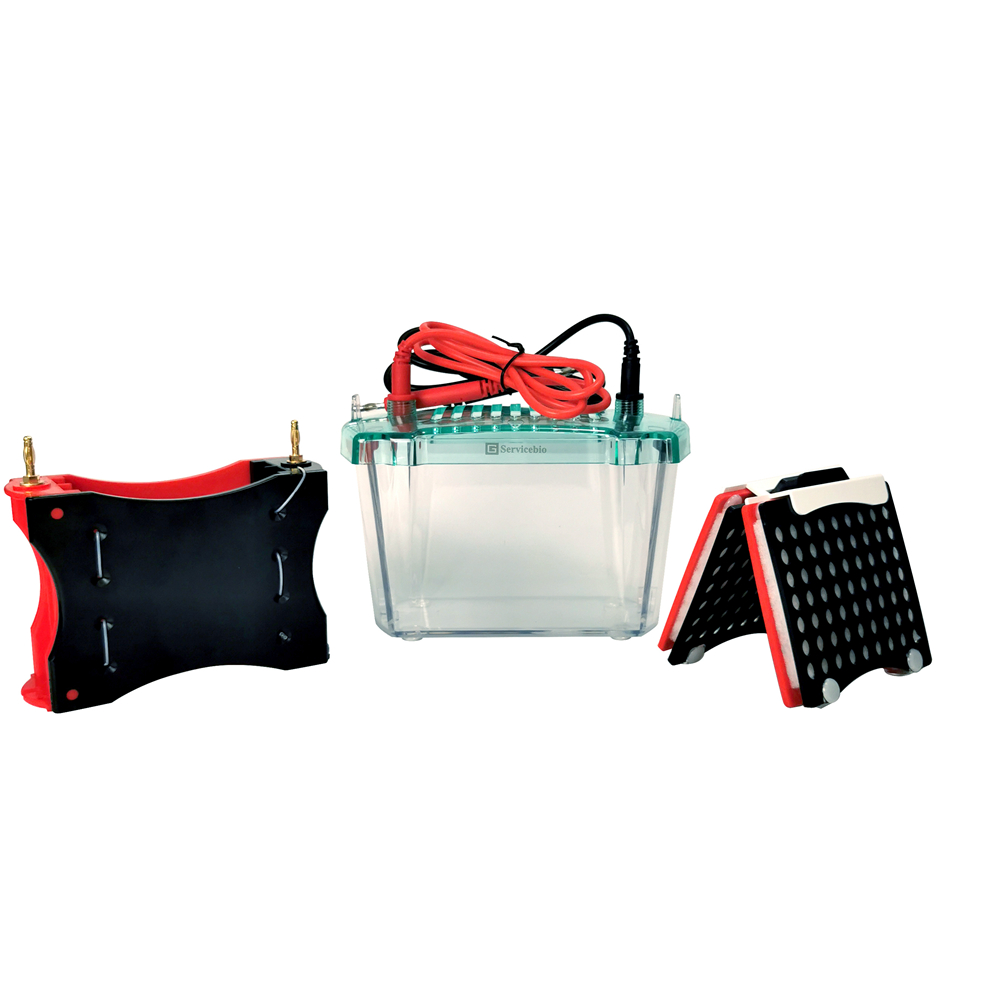

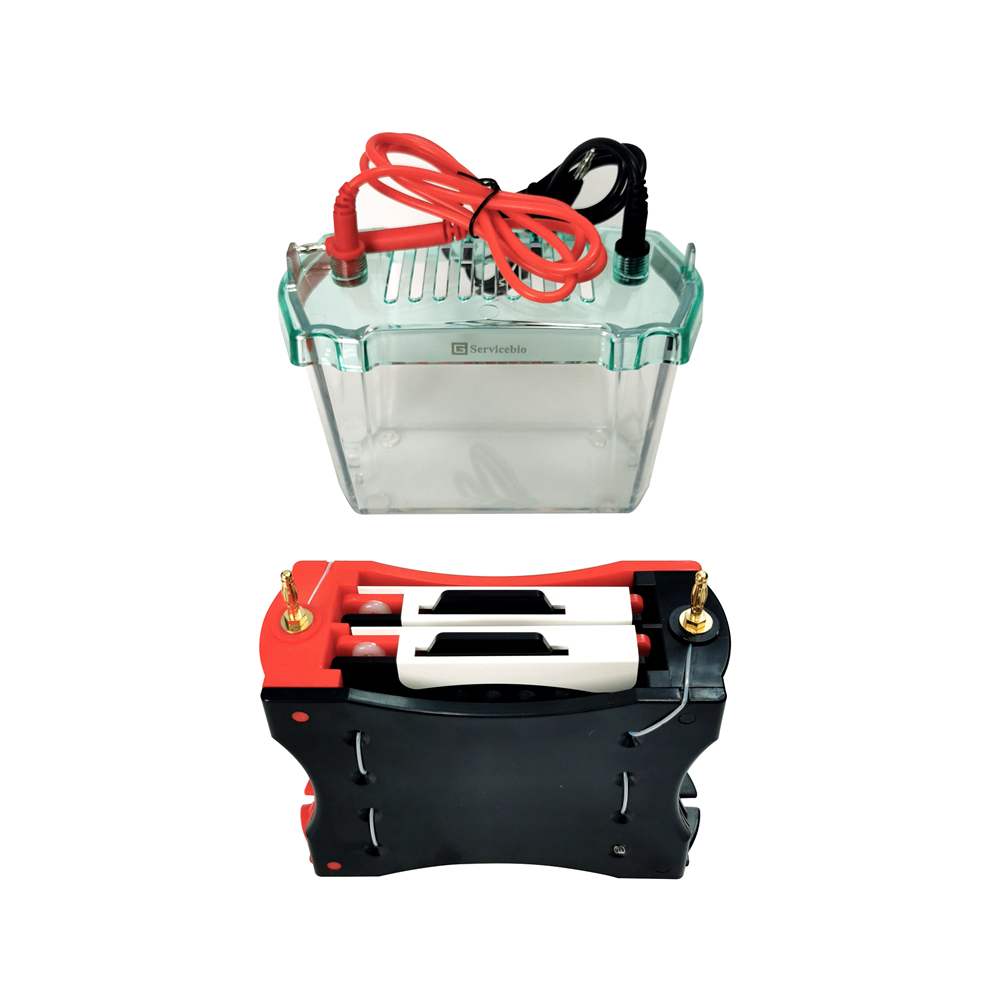

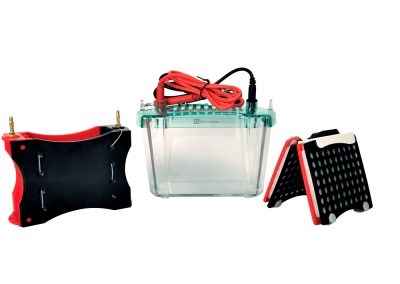

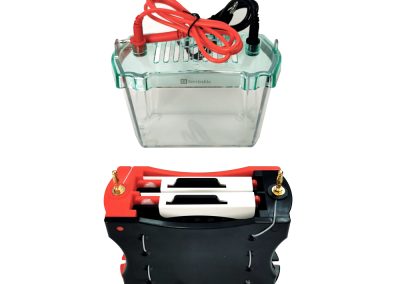

Product configuration list
| Serial number | Name | Quantity |
| 1 | transfer clip (gel holder casette) | 2 sets |
| 2 | transfer core (transfer tank) | 1 set |
| 3 | electrophoresis box | 1 set |
| 4 | Transfer sponge | 1 box |
| 5 | Transfer filter paper | 1 box |
Precautions
1. The main components of this series of products are fragile products. During packaging, transportation and use, be careful not to bump or drop the product, which may cause damage to the product and cause the product to fail to work normally.
2. Metal parts such as platinum wire and electrode column in this product should be paid attention to whether there are oxidation, breakage, loosening and other problems during use, cleaning and maintenance. Please replace and maintain them in time. The platinum wire is easily broken, so be careful when handling it.
3. After daily use, please wash it with deionized water in time, and place it in a dust-free place to dry for use.
