SMV-P Vertical Mixer
The vertical mixer is suitable for general mixing scenarios in industries such as biology, medicine, and chemicals.

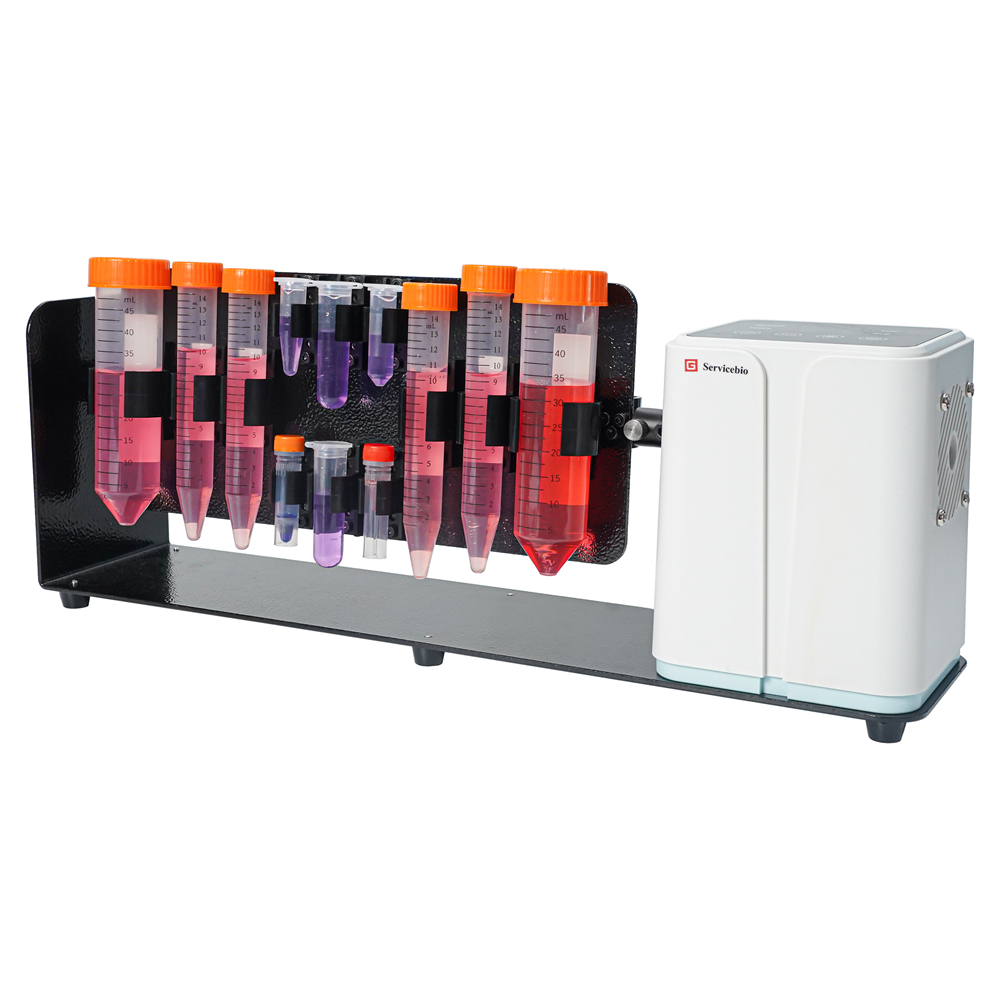

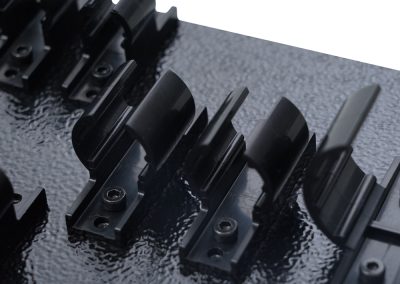

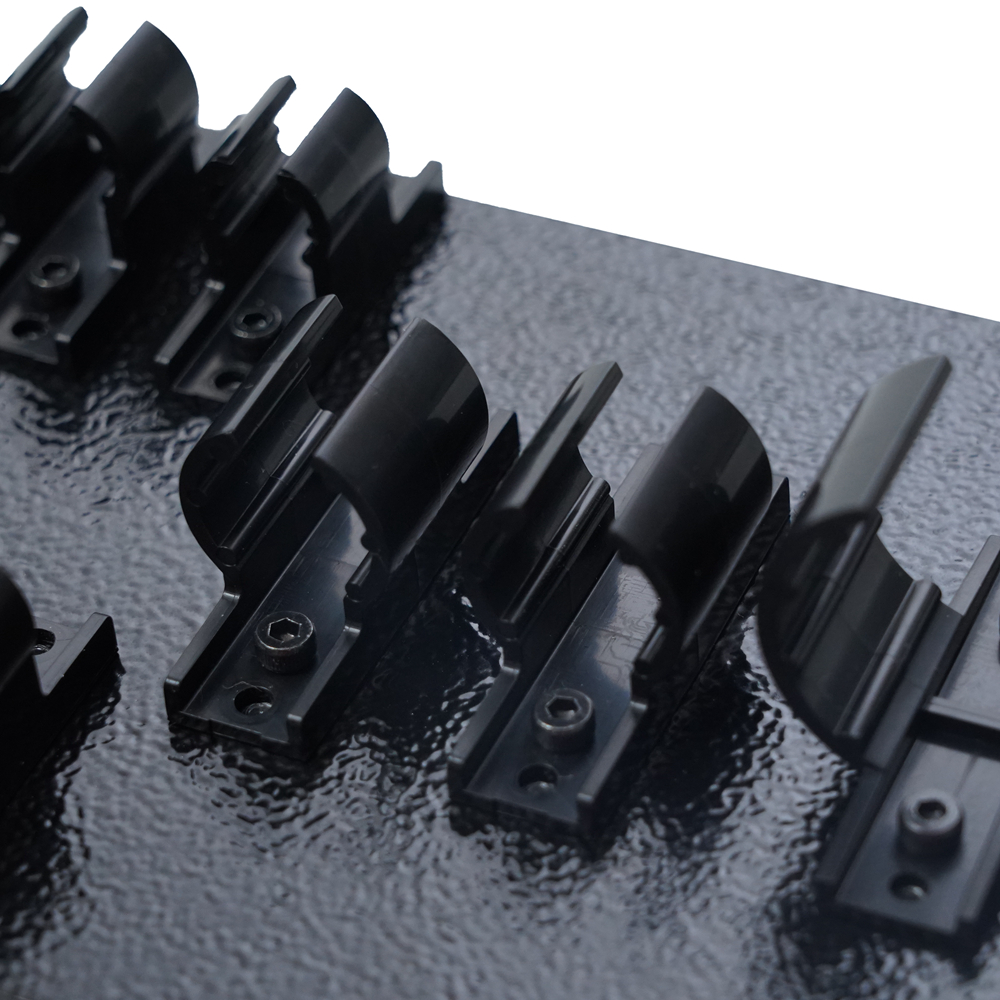

Various sizes of adapters can be freely combined, suitable for 1.5mL,2.0mL,5mL, 10mL, 15ml,and 50ml centrifuge tubes
Memoryfunction: The startup parameters are set to thelast settings before shutdown
Descriptions
2가지 모드(Timed, Continuous) 운영이 가능한 vertical mixer
– 디지털 디스플레이와 간편한 조작성
– 냉장고, 인큐베이터에서 작동 가능
– 360도 회전 및 조절 가능한 속도로 부드럽고 완벽한 혼합 가능
– 어뎁터 추가를 통해 1.5ml부터 50ml, plate까지 장착 가능
Key Futures
Structural Diagram
2.Optional Accessories
| Model | Description |
| SMV-P-A | 8×1.5(2.0)mL+4×5mL+8×15(10)mL+4×50mL |
| SMV-P-B | 12×1.5(2.0)mL+8×15(10)mL+4×50mL |
| SMV-P-C | 40×1.5(2.0)mL |
| SMV-P-D | 40×5mL |
| SMV-P-E | 18×15(10)mL |
| SMV-P-F | 12×50mL |
| SMV-P-G | 6×15(10)mL+8×50mL |
| SMV-P-H | 4×Microplate(96 Deep Well Plate,PCR Plate, ELISA Plate) |
If you need to customize other models or modules, please contact the supplier
Specifications
| Product Name | Vertical Mixer |
| Environmental temperature | 5°C~40°C |
| Relative humidity | ≤80% |
| Input power | AC100V~AC240V |
| AC power | 50 Hz/60 Hz |
| Output power | 24 V，1.5 A， 36 W |
| Motor type | Stepper motor |
| Speed range | 10-80 rpm |
| Time range | 1m-99h59m |
| Speed display | Digital display |
| Operating mode | Continuous mode |
| Voltage | 100-240 V，50/60 Hz |
| Input power | 36 W |
| Dimensions | 395×90×136 mm |
| Product weight | 1.77 Kg |
