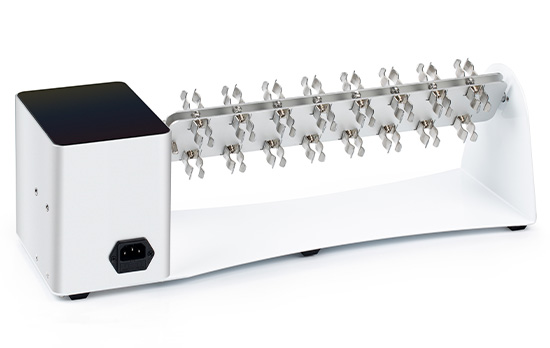

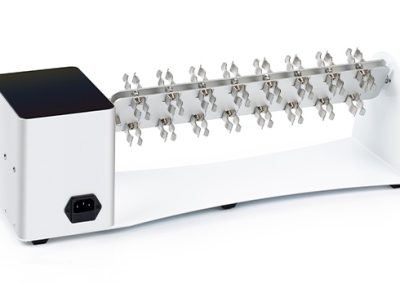

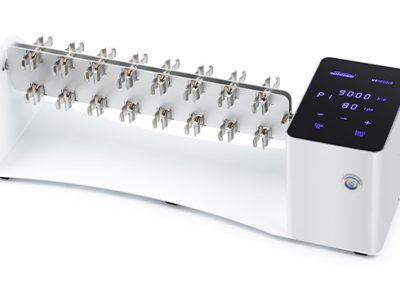

MM-V5016 Vertical Rotating Mixer
Vertical Rotating Mixer provides efficient but gentle mixing to keep the sample in suspension status. With its adjustable speed, the rotating mixer is widely used in blood mixing, preventing blood clots, latex diagnosis, immunoprecipitation and similar applications. Equipped with a large-size color LCD screen and adopted full touch operation mode, the instrument can quickly input time, speed and other parameters, which meets the researchers’ needs for modernization of bench-top instruments.
Descriptions
MM-V5016 Vertical Rotating Mixer provides efficient but gentle mixing to keep the sample in a suspension status, widely used in blood mixing, preventing blood clots, latex diagnosis, immunoprecipitation and similar applications.

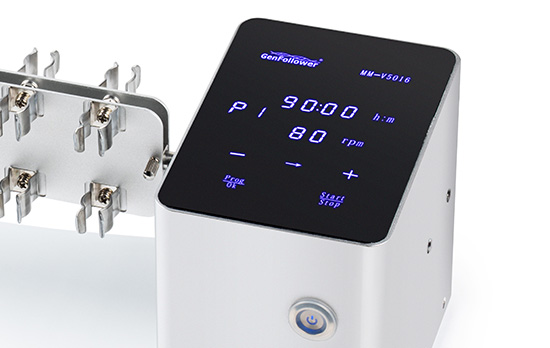

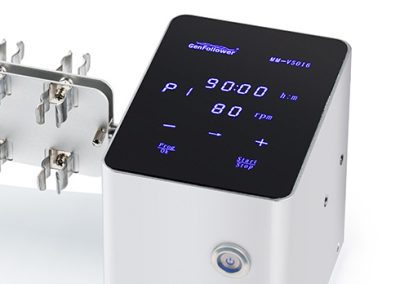

The instrument is equipped with a large-size color LCD screen and adopts full touch operation mode, which can quickly input time, speed and other parameters. Different tube holder frames are also available for different sizes of test tubes and centrifuge tubes. The adopted DC brushless motor with stable speed, low noise and long life enables this instrument a good partner in your laboratories.
Key Futures
- Large-size color LCD screen and full touch operation mode.
- Controlled by microprocessor and allow 5 programs to run in sequence.
- Adjustable speed meets different requests of experiment.
- 360° vertical circulation rotation, operating smooth and steady.
- Optional different tube holder frames available, including but not limited to 16 x 50 mL and 16 x 15 mL centrifuge tubes.
- Adopt DC brushless motor with stable speed, low noise and long life.
- Smart appearance, solid structure and simple operation.
Application
The vertical rotating mixer is widely used in blood mixing, preventing blood clots, latex diagnosis, immunoprecipitation and similar applications.
Specifications
| Model | MV-Mix5015 |
| Amplitude | 3.5 mm |
| Revolving speed | 500 ~ 2500rpm |
| Speed control accuracy | ±1 rpm |
| Timing | 1s ~ 9999min |
| Pulse interval timing range | 1 ~ 10s |
| Pulse operation timing range | 1s ~ 99min59s |
| Maximum support weight | 5 kg |
| Cover size (L x W) | 180mm x 300mm |
| size (L x W x H) | 382mm x 222mm x 400mm |
| Input power | C100-240V, 50/60 Hz, 60W |
| Mode | Touch, Continuous, Timing, Pulse |
| Weight | 15kg |
